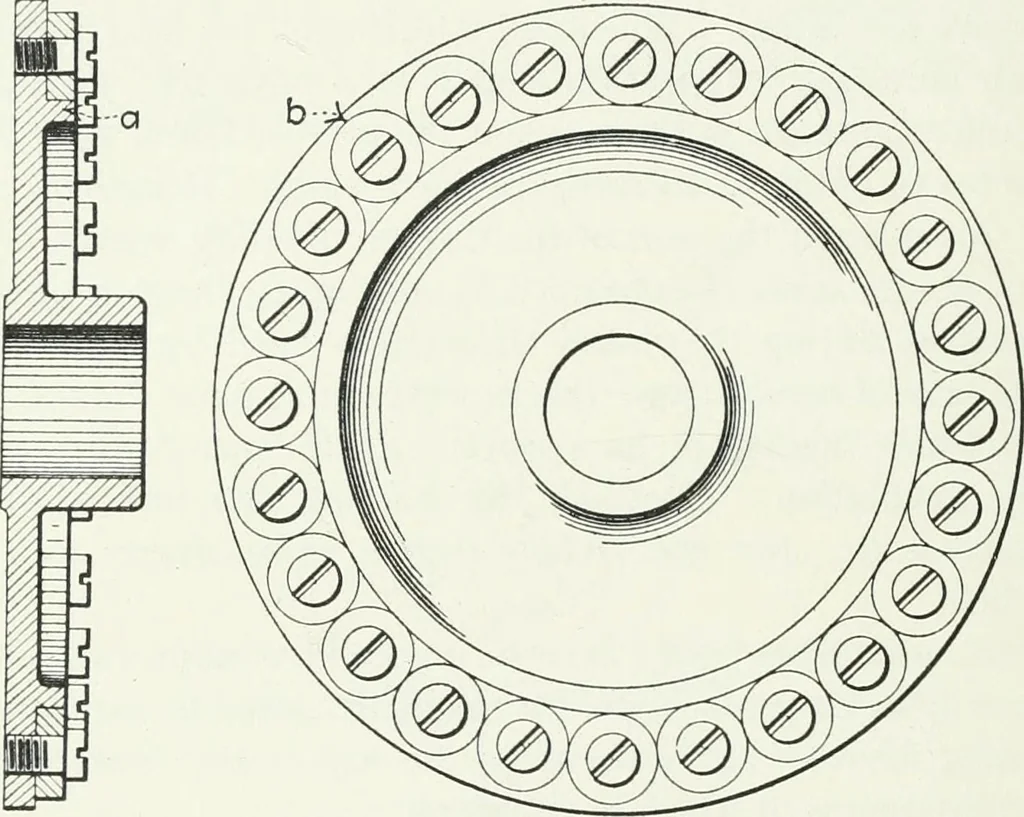

turned upon it. A number of smaller discs b, equal innumber to the divisions required are made—such discs beingabout the easiest of all things to make of a high degree ofaccuracy and uniformity. The diameters of the ledge a and ofthe discs h are so calculated that, when the discs are placed… … Fig. 42.—Second method of originating index plates. ORIGINATING INDEX WORM WHEELS In a very common form of gear cutting machine the indexingof the gear teeth is dependent upon a large worm wheel mountedupon the shaft which carries the blank operated upon, andthere is the same necessity for…
