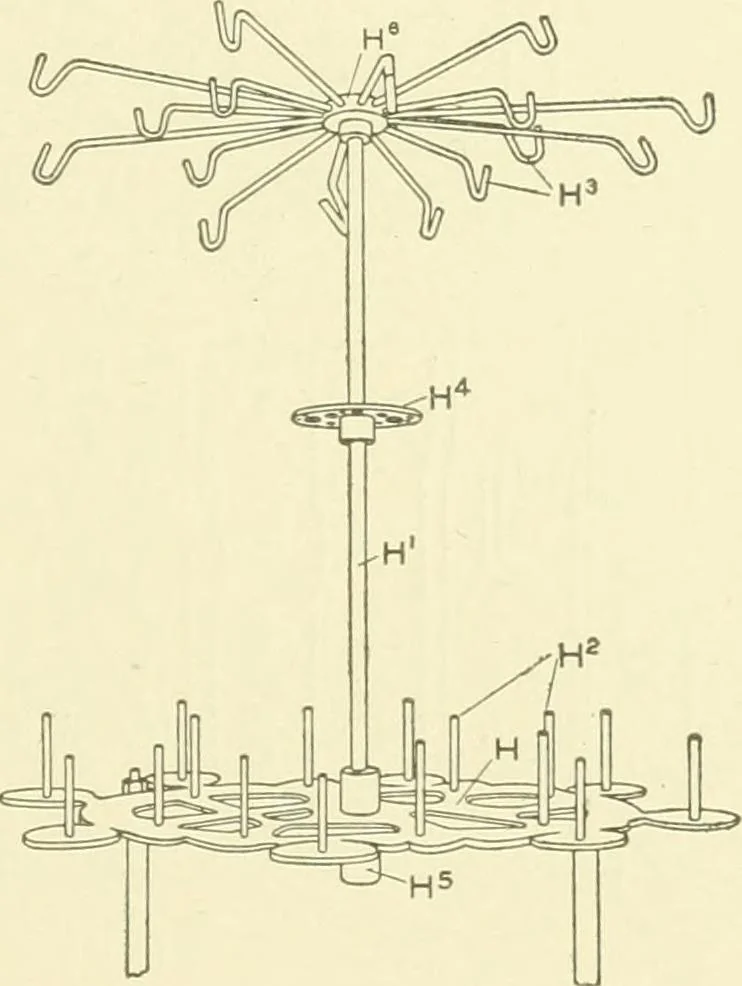

le F, and a coil spring Y^ isattached to trip Y\ tending to hold it in contact with I. The shifterfork and handle are fastened to shaft V in such a position that thenormal action of the coil spring V^ is to hold the belt on the loosepulley, but by raising the handle the belt fork shifts the belt… … Pig. 50. Bobbin Rack. 121 108 KNITTING when spring Y returns the beU fork and shifts the beU to the loosepulley. Hole and Bunch Detector. Fastened on top of the cam ring,directly over the end of trip Y (Fig. 51), is the needle protectorbracket Y, provided with latch Y and finger Y. Through the…
