Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 138

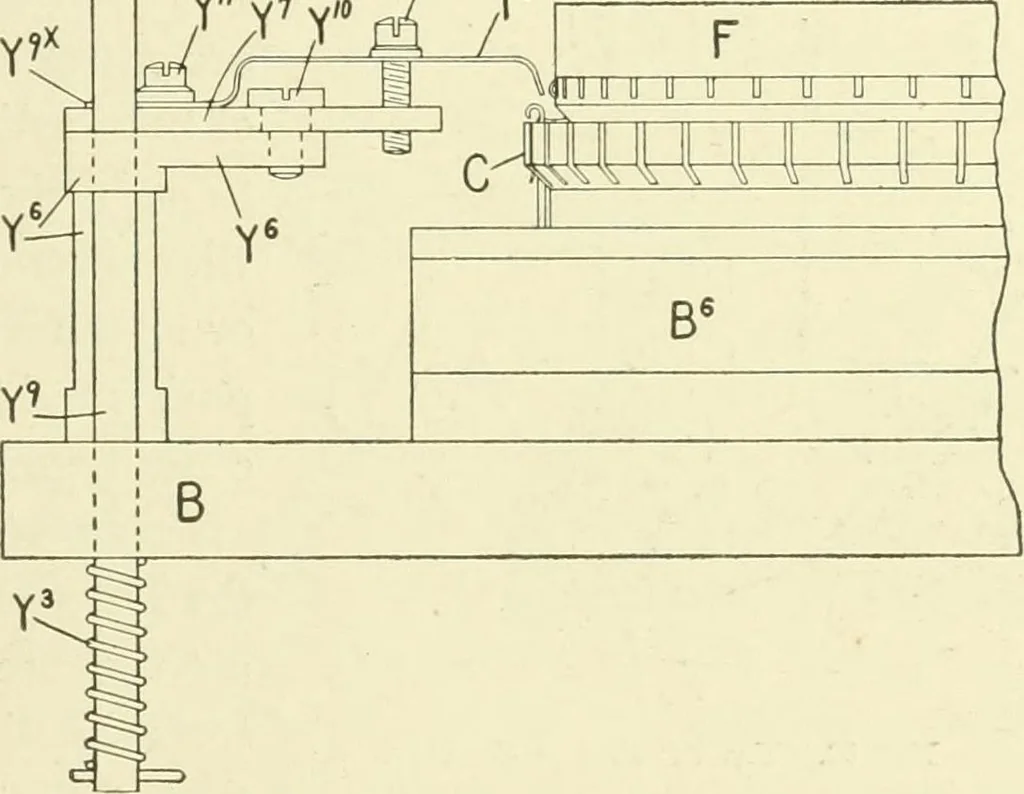

; Y is the phmger inwhich is cut the recess or channel Y^, into which one end of the swivelbar Y rests in its normal position. The pivot of the swivel bar is onthe stud screw Y. On the top side of the swivel bar is the hole andbunch detector Y^ made of thin spring steel, and fastened thereon… … Fig. 53. Hole and Bunch Detector. may be obtained by means of the adjusting screw Y. Normally,the detector rests with one end in the recess Y and the other betweenthe ])aths of the ends of the needles at the point where both sets ofneedles have just completed their stitch. If, however, a needle…
Knitting machines
