Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 152

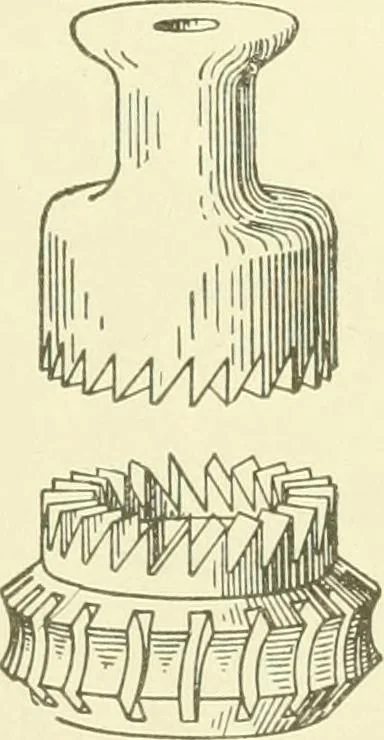

Fig. 65. Worm. Fig. 66. Clutch and Worm Gear. knitting machines. Four legs support the annular base frame A,which is machined to guide the take-up plate B, and connected bythe take-up standards C C to the rotating bevel gear ring D (See A,in Fig. 58). This is seated in the stationary bedplate or…
Knitting machines
