Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 212

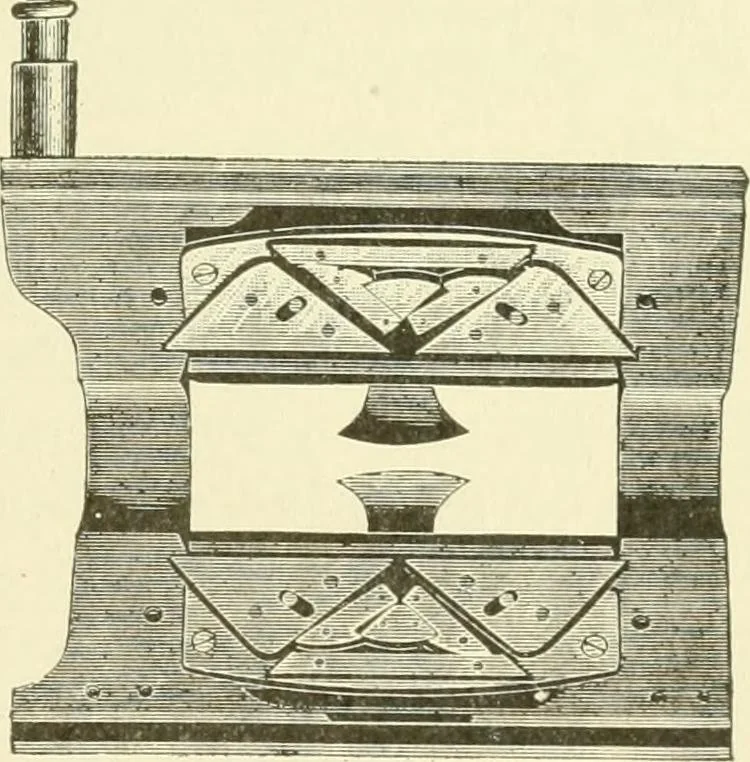

raw the wire out of the comb Y,(Fig. 109) and push the teeth upthrough the network from below,and then run the wire into the teethagain over the network. Attach to this comb a weight stand and atwo pound weight. Turn the tension nut A back a trifle more thana quarter of a revolution, so that the… … Fig. 103. Automatic Diop Locks. 191 176 KNITTING Push up the needles drawn down and with the work hook (Fifr.109) pick up the last stitches or loops cast off the needles next to theones pushed up, and put the loops on the empty needles. Knit fourrounds, then widen for thumb as follows: Push up a…
Knitting machines
