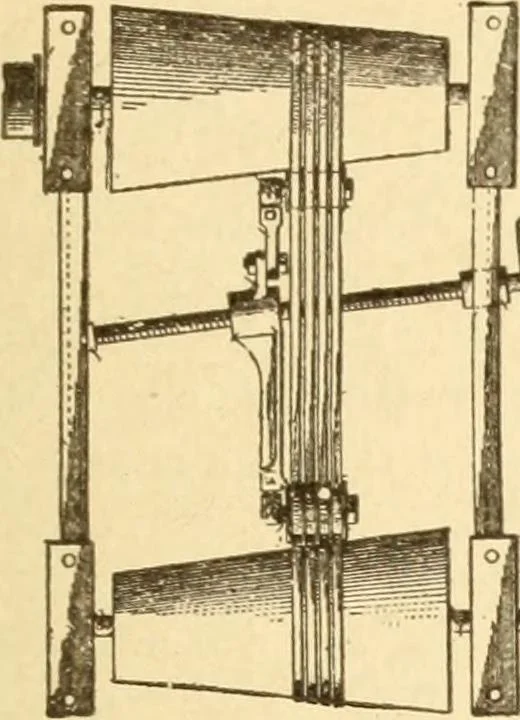

90. CURVED CONE PULLEYS, for variably ii>creasing or decreasing speed by traversing the belt TRANSMISSION OF POWER. 35 … 91. SHIFTING DEVICE FOR CONEPULLEYS.—Made efficient by a division ofthe proper belt width into a number of nar-t row belts, kept in place by webs on the belt^ tighteners, which are moved forward and back-ward by a carrier nut and screw shaft. Thisarrangement gives more power for a given width?|…
