Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 25

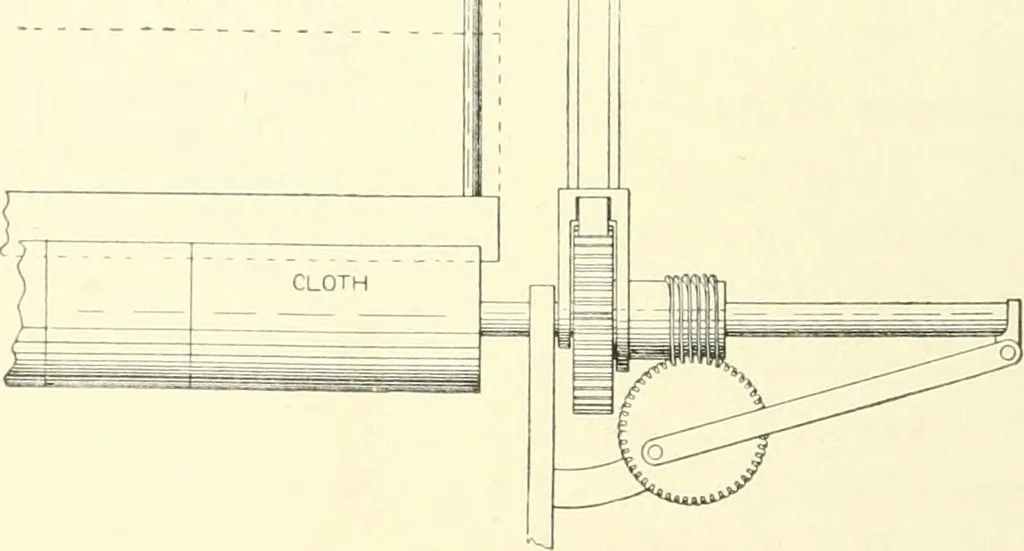

motion is imparted by the suitably connectedrocksliaft levers. The mechanism for impaiting the endwise motion, Fig. 8, isattaclied to tlie building rail on the receiving pulley end of themachine from which it gets its movement. The friction rail issupported at each end by trunnions on which it… … Fig. 8. Endwise Motion. connected with the building rail and turns it with a worm gearrunning on the same trunnion. The worm causes to revolve awheel gear to which is attached a rod connecting it with the cot-ton friction rail in a manner to impart to it a slow motion backand forth. These two…
Knitting machines
