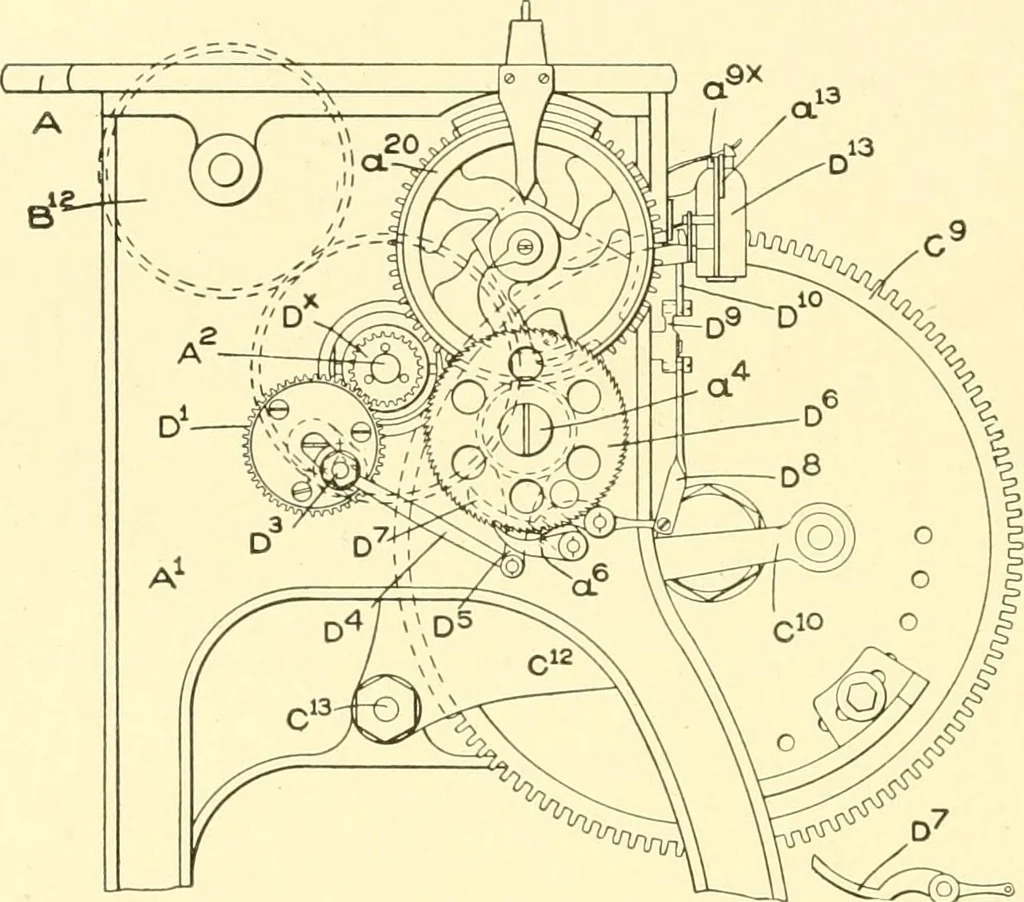

to itat one end (See Figs. 133 and 138) the pinion D by means of whichmotion is transmitted through the connecting pawl operating mechan- 239 222 KNITTING Ism. This mechanism consists of the gear D*; the adjustably mount-ed crank pin D^ which is attached to the Hnk D^; the pawl carrier DSwhich is… … ^^^:^:^>=s Fig. 138. Gears and Ratchets. The crank pin D^ may be adjusted to control the stroke of thepawl, so that it will move the ratchet wheel the distance of one or anydesired number of teeth; the greater the movement of the ratchet wheelthe shorter the stocking, and vice versa. The pawl…
