Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 283

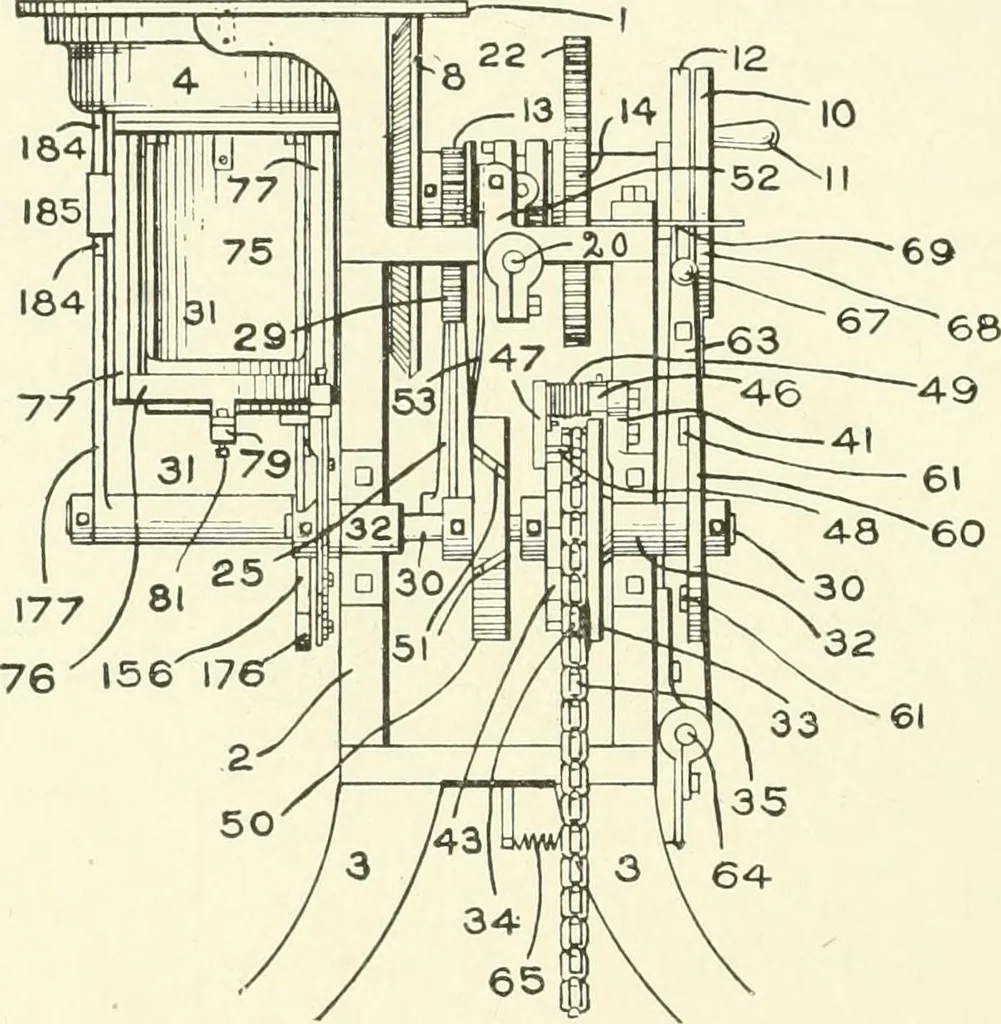

and extending 255 238 KNITTING over both ratchets and chain-pulley, and is provided with an arm 47,having a pin 48, which projects into the path of movement of the chain-lugs. A spring 49 is coiled about the pin 46, and tends to hold thearm and shield in position; but when a chain lug raises the… … Fig. 149. during the knitting of one stocking, the length o^ the article and itsshape being controlled by the length of the chain employed and thespacing and number of lugs carried by the chain. The knitting opera-tion itself continues uninterruptedly without regard to the rotation ofshaft and…
Knitting machines
