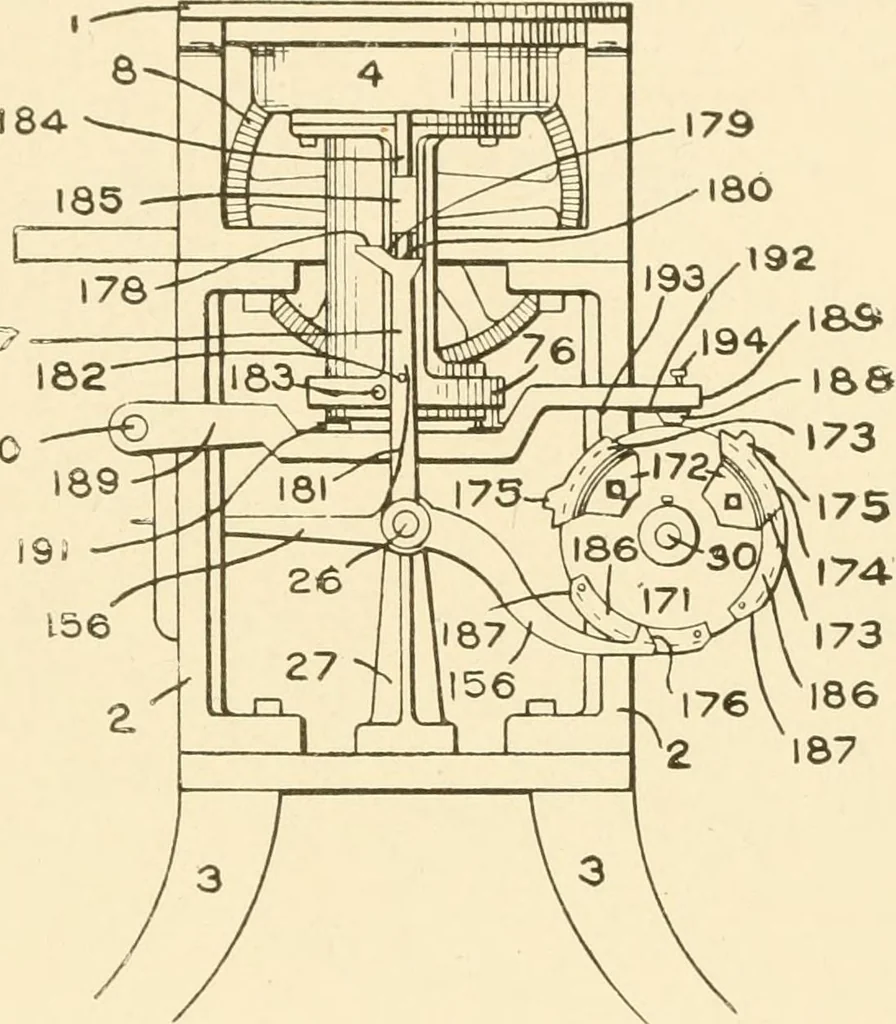

out of action. During the narrowing orwidening the knitting-cams have a rotary reciprocating motion throughthe segment and other gearing; and to change to this motion from thecontinuous rotary motion, another mechanism is provided. Changing the Motion. At one end of the shaft 30—the right-hand end… … Fig. 1.50. frame of the machine, the lower end of the lever being acted on by aspring 65 to keep the pin or roller in engagement with the cam-disc.The upper end of the lever 63 carries a belt-guide 66 for shifting thebelt when cam 61 acts on the shipping lever. The lever is provided with a handle…
