Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 285

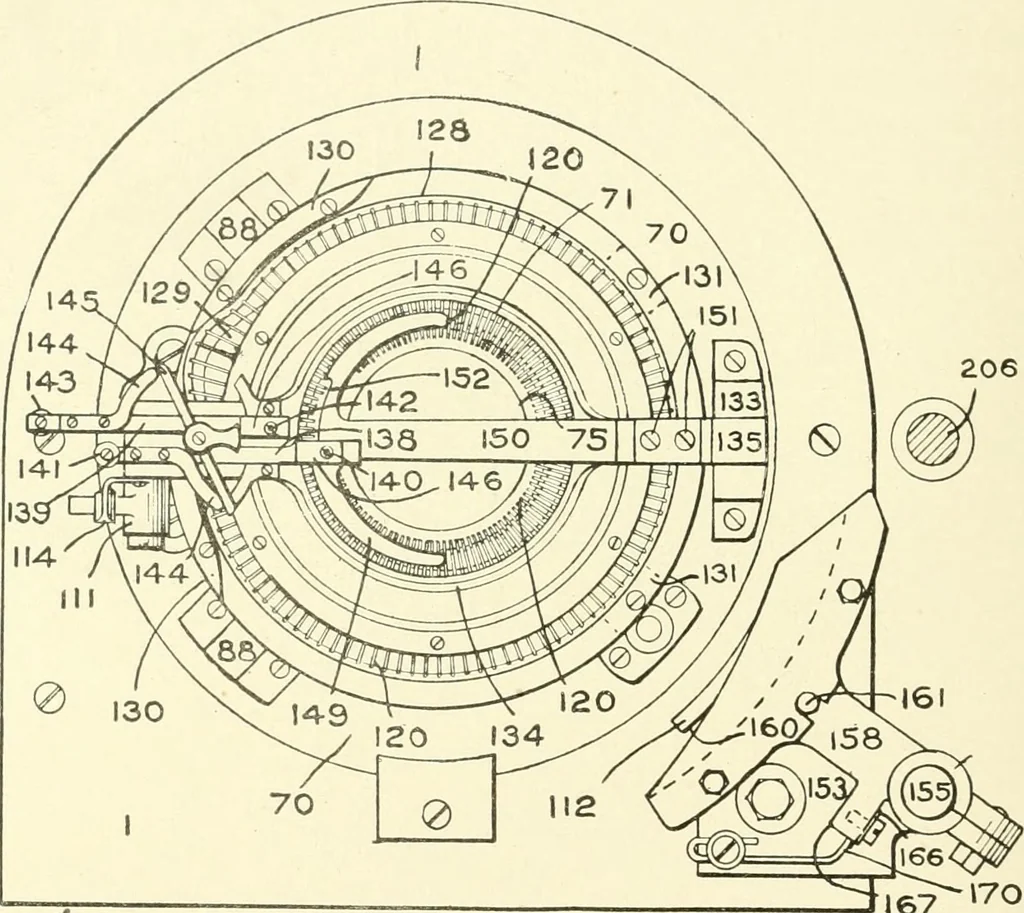

vement, so that the lever is retained by the spring-latch and the 257 240 KNITTING driving-belt held on the loose pulley, thus stopping the machine. Tostart the machine, lift the spring-latch and permit the spring to causethe belt-shipping lever to restore the belt to the fast pulley; the move-ment… … 167 Fig. 151. ley, but not to be engaged by the spring-latch, so that the power isthrown off the machine momentarily, at the moment when the changein the knitting above described is taking place. The cam-lugs operatethe lever and pass beyond it during the time that the pawl is makingone stroke to…
Knitting machines
