Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 71

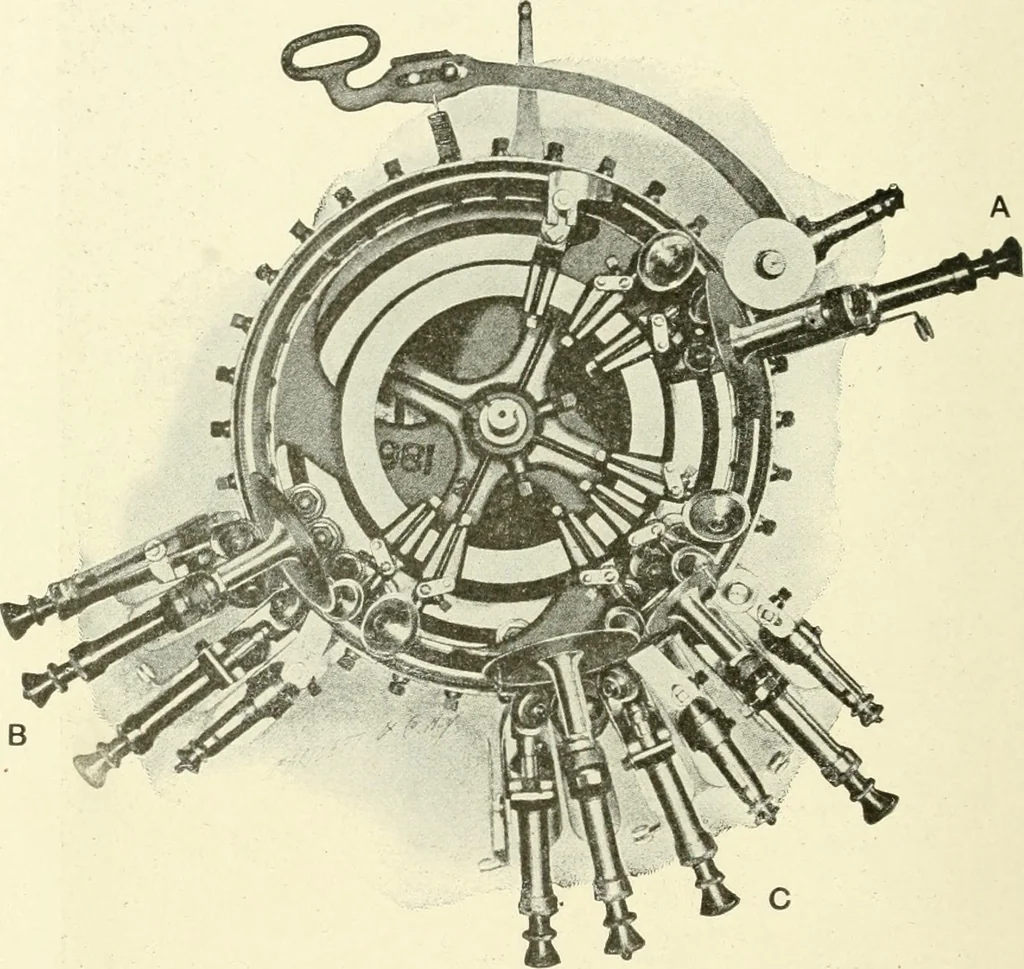

36 Gauge Cloth (Spriug Needle). 61 60 KNITTING. and release the yarn. This bur puts in a loose back and reducesthe inward bend of the needles very considerably, though the fric-tion slightly exceeds that of some other burs and slightly increasesthe side strain on the needles. A close study of the… … Fig. 23. Feeds. much to the close observer and cannot fail to make the student asuperior knitter. Feeds. The large cylinder shown in the cut Feeds withthe projecting collar screws is the needle cylinder. The directionin which this cylinder turns is counter-clockwise. Beside thecylinder and above it…
Knitting machines
