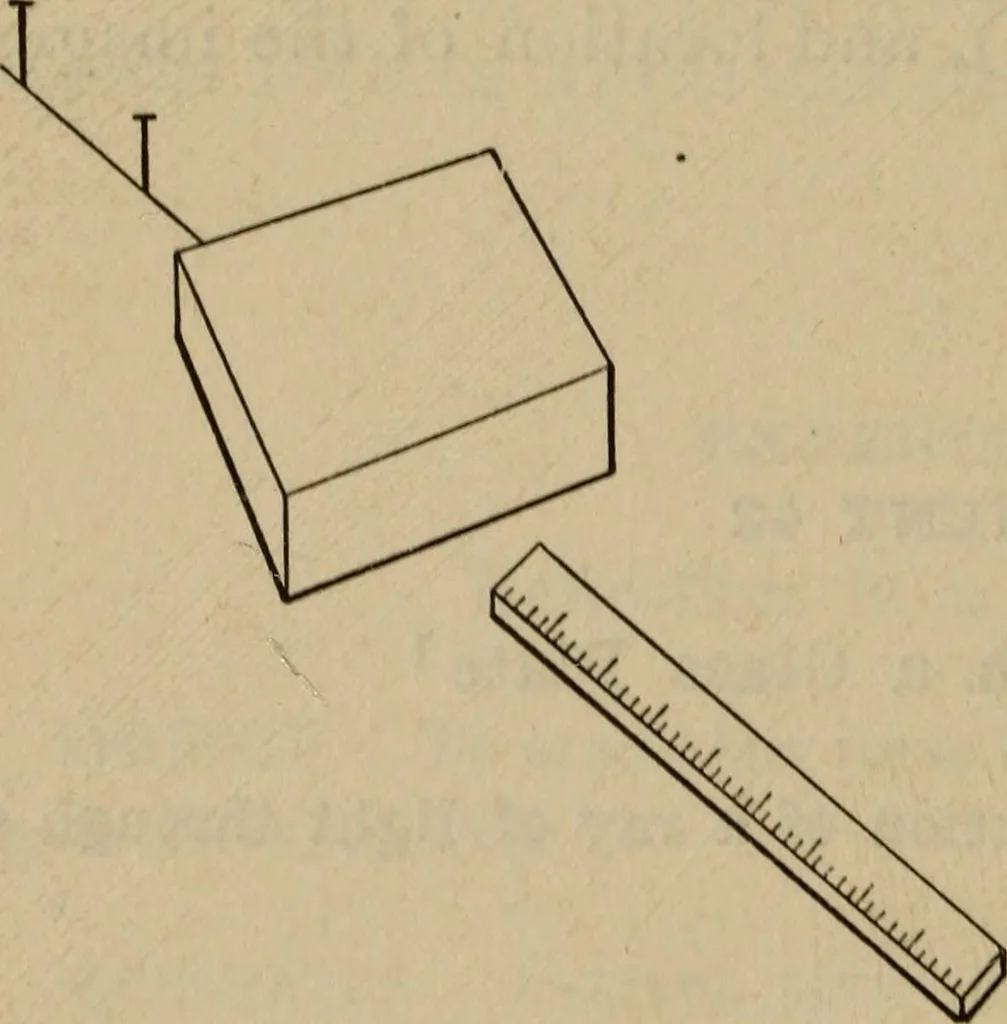

tom of the book. With asharp, hard pencil, trace the outline of the plate of glasson the page. Near a corner of the upper edge, draw a line at an angleto the upper edge of the glass. On this line place two pins, several centimetersapart. Place the eye on alevel with the glass plate.Looking through… … Fig. 57. pins. Continue the linesyou have drawn until theyhave met the lines indicating the surfaces of the plate.Draw a line representing the path of the light throughthe glass, indicating by arrowheads on all lines, thedirection in which the light is proceeding. On the diagram, at the point where…
