Moss, Sanford A. (Sanford Alexander), b. 1872 · New York, D. Van Nostrand company · leaf 21

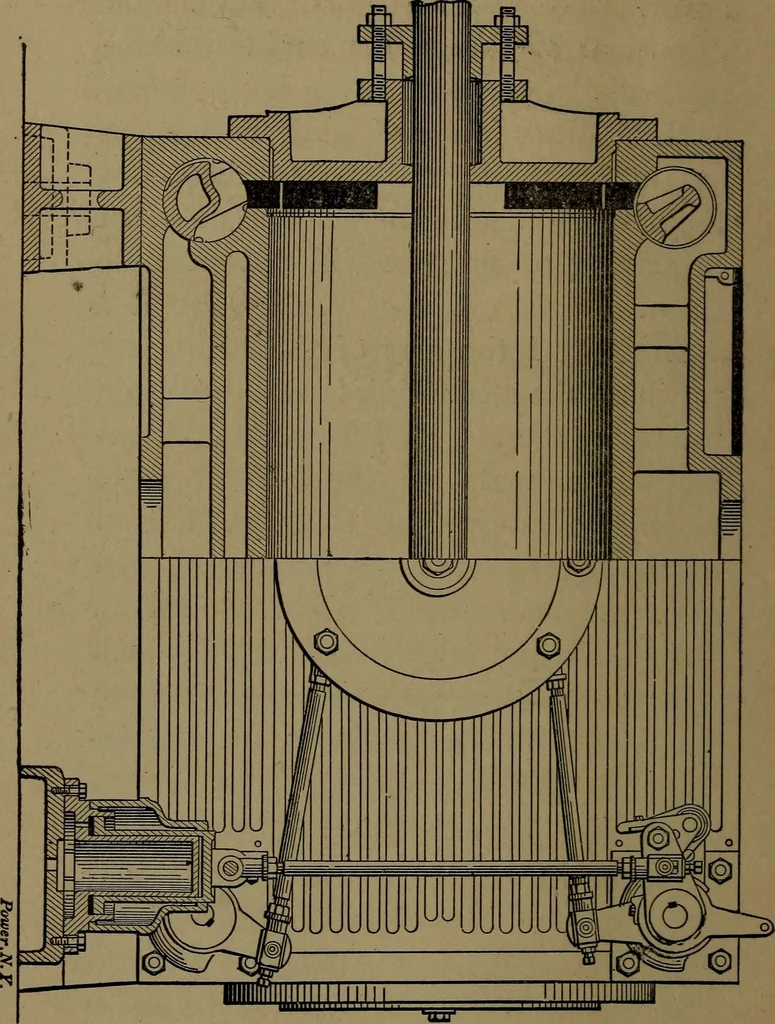

steam link is attached is onon the lower side of the bell-crank. Inthe arrangement of Plate I (due to EdwinReynolds), the edge of the valve whichopens the steam port moves away fromthe center of the cylinder. In the ar-rangement of Fig. 4 the port is openedby motion of the valve toward the centerof… … Fig. 4. Steam Valves Opening Inwards. 19 between the two arrangements, and they are identical so far as theory is concerned. In the arrangement shown in Plate I the head-end steam valve (that is, tha
Corliss valve gears · Machine design
