Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices"; (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing company · leaf 88

An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 88

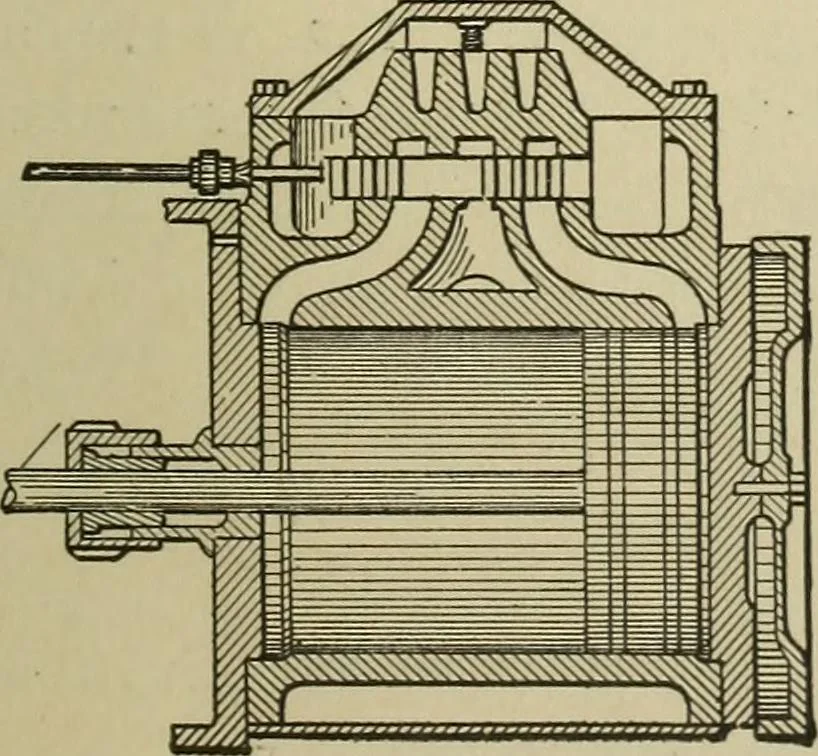

171. TYPES OF SLIDE VALVES. Slide valve of the Chandler& Taylor tandem compound engine. The valve is of the gridiron type, and is double-ported for both steam andexhaust, making it possible to admitlarge amounts of steam into each end ofthe cylinder quickly and with a veryshort valve travel.… … 84 STEAM POWER APPLIANCES. 172. TYPES OF SLIDE VALVES. Slide valve of the Brownell engine. The valve is of the box type, double-ported for both steamand exhaust, and practically perfectlybalanced. The steam pressure is re-moved from the back of the valve bymeans of a balance ring which bearsagainst…
