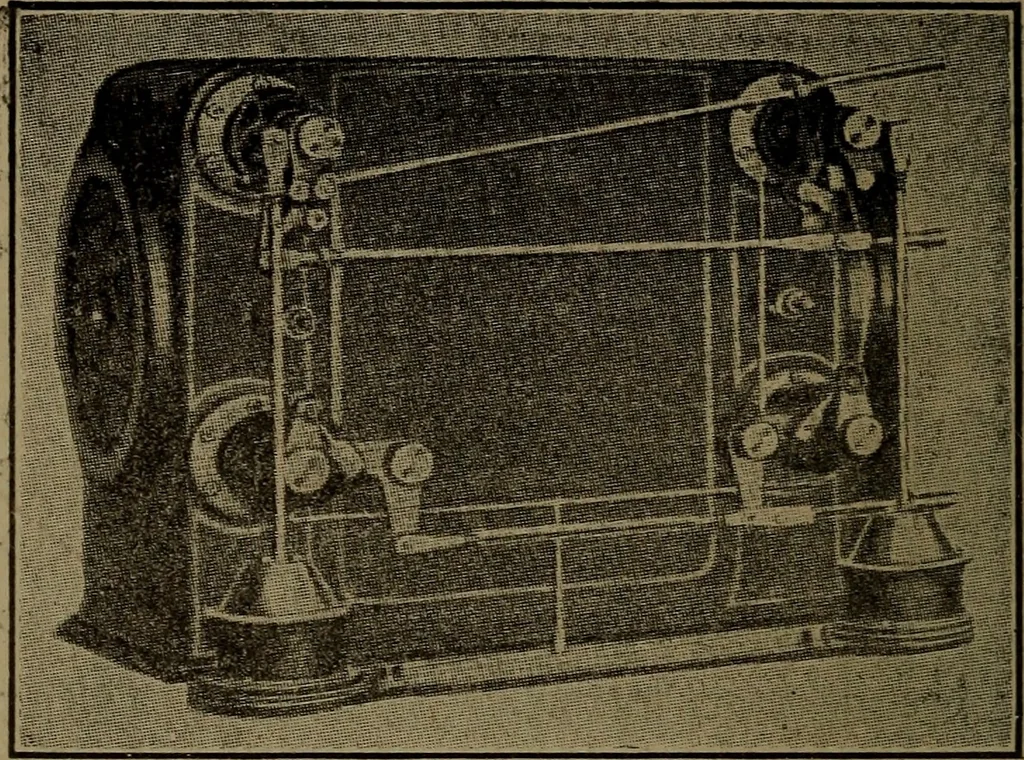

ngle or double eccentric me-chanisms are sometimes directly connectedto the eccentric without a wrist-plate, asin the case of the steam valves in thedouble eccentric mechanism of Fig. 6.This figure also shows an alternativeform of wrist-plate, here used for theexhaust valves, but which is… … Fig. 6.Steam Valves without Wrist-Plate. Ex-haust Valves with close connectedWrist-Plate. valve. The exhaust links are thereforemuch shorter than normally. This me-chanism is the same in all essential par-ticulars as the ordinary wrist-plate. CHAPTER II. OPERATION OF CORLISS VALVE GEARS. In this…
