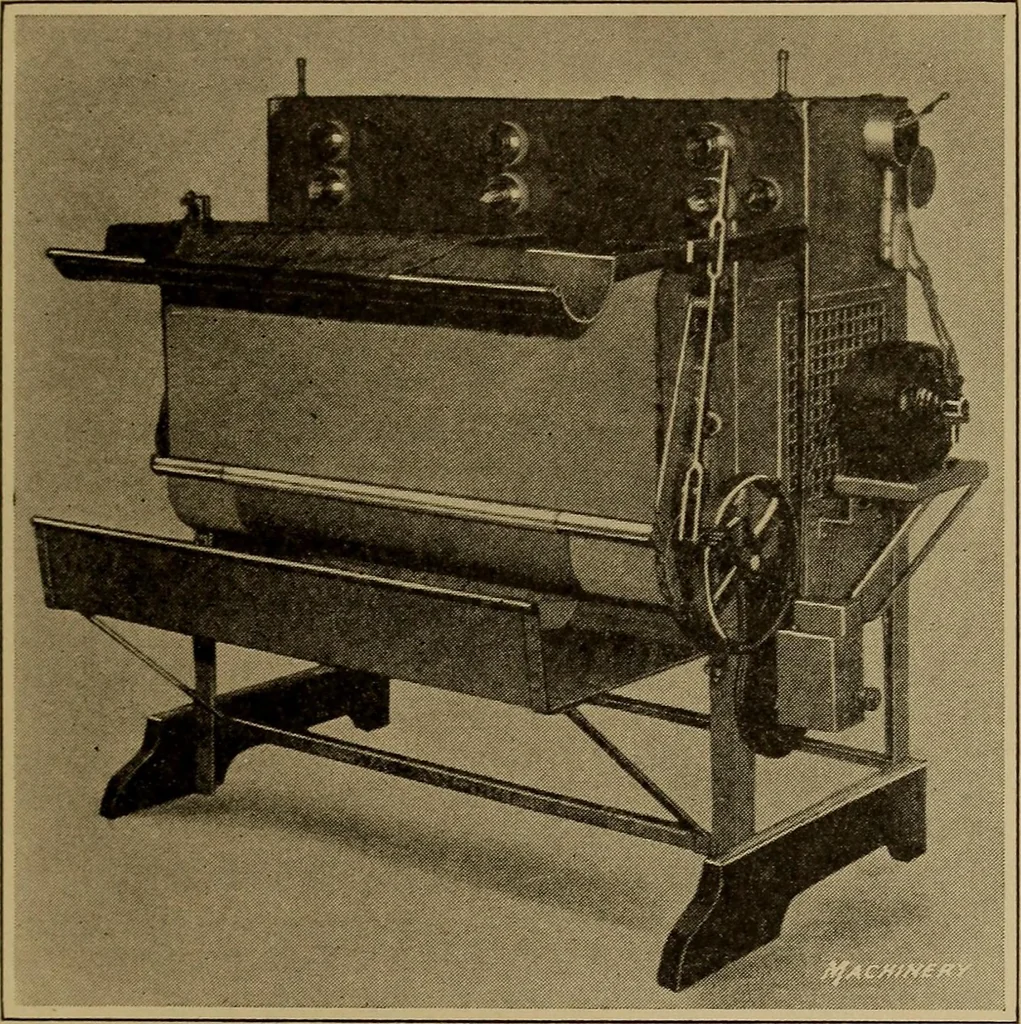

WASHING AND DRYING l87 from zero to the maximum and he can also stop or start thecurtain while the motor is running. Rolls of blueprint paperand tracings are supported by a trough. The paper can becut to any size while the machine is feeding, if so desired, acutting edge being provided for that… … Fig. 3. Flat-glass Type of Electric Blueprinter desired part of a roll. The arc lamps, rheostats, and wiring arewithin the cabinet of the machine. Arc control switches regu-late the resistance of the rheostats, which regulate the sizeand intensity of the arcs. Paper for Electric Blueprinting. — The…
