Lessons in practical electricity; principles, experiments, and arithmetical problems, an elementary text-book (1903)
Swoope, Coates Walton. [from old catalog] · New York, D. Van Nostrand company · leaf 146

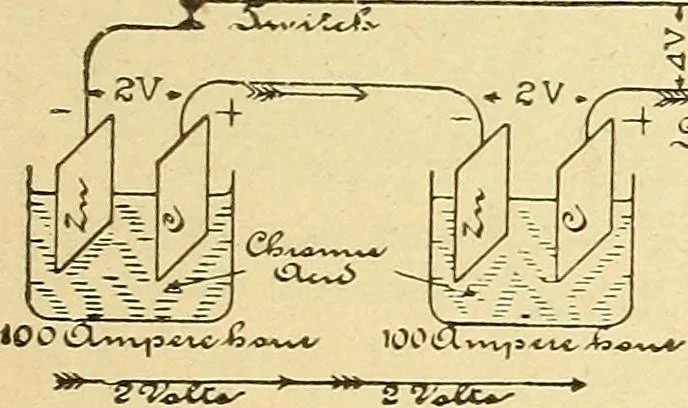

Fig. 107— Two Cylindrical Tanks, Full of Water, Connected in Series for Pressure. Gauge 2 records twice the. pressure indi-cated upon gauge 1. ^^cuC^w-<x^vw<>vvv*^tt^ … Fig. 108.—Two Cells Connected in Seriesfor Pressure. The galvanometer indicates twice the pressureof one cell. each cell separately,is delivered at twiceof flow is twice as great as with one cell. in series.total pressure applied tothe galvanometer whenthe switch is closed is twicethe pressure of…
