Modern American locomotive engines; their design, construction and management. A practical work for practical men (1883)
Edwards, Emory, b. 1841 · Bridgeport, Conn., Frederick Keppy · leaf 225

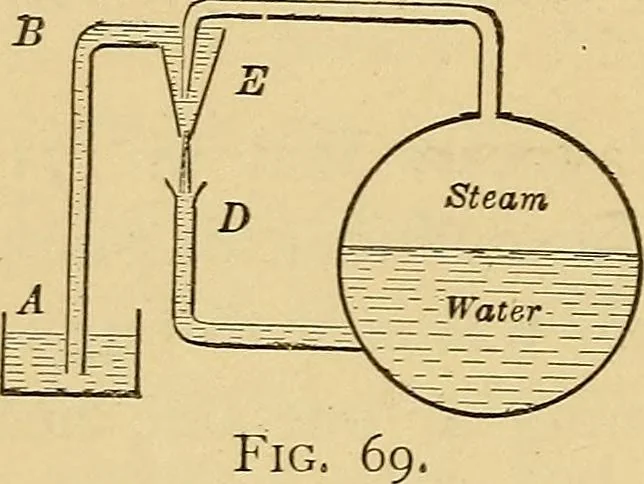

refore, issue from E, and we shallhave made the first step towards the construction ofan injector, viz., the discharge through E of a mixedjet of steam and water. Fig. 70 shows a Giffard in-jector, as made by Wm. Sellers & Co., Philadelphia,Pa. There is a pipe marked steam, which termi-nates in… … i INJECTORS. 2 I 5 corresponds to A B in the elementary diagram, andby turning the wheel marked water regulator thetinted sliding tube is brought up or down, so as toregulate the supply of water which is sucked up bythe inducing action of the steam. There is here,therefore, precisely the apparatus…
Locomotives
