Lessons in practical electricity; principles, experiments, and arithmetical problems, an elementary text-book (1902)

Swoope, Coates Walton. [from old catalog] · New York, D. Van Nostrand company · leaf 147

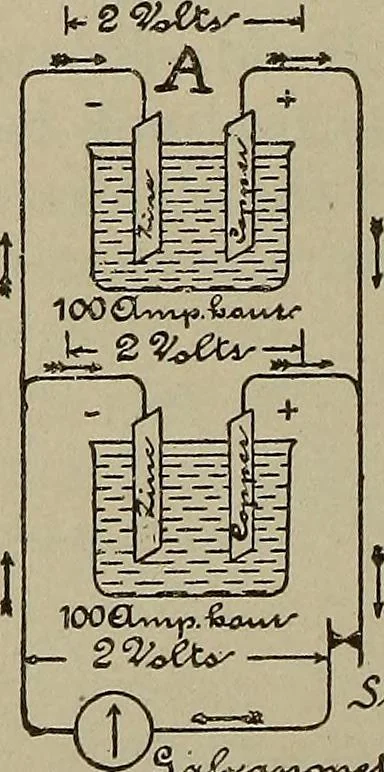

An illustration from Lessons in practical electricity; principles, experiments, and arithmetical problems, an elementary text-book, 1902, leaf 147 — ressure is not increased,the quantity of waterwhich can be drawn fromthe valve in the drainpipe increases in propor-tion to the number oftanks so added; thus, thetotal capacity of 2 tanksis 200 gallons; 6 tanks,600 gallons. In Fig. 107the tanks were arrangedin series to add theirpressures together,… … B 200CU^&^ KD S^Ot/W. *WOVl**«/t^ .^vwvtc« Fig. 110.—Two Cells Connected in Parallelfor Quantity. The total capacity and E. M. F. of the two smallcells are exactly equal to that of the larger cell. OHMS LA\V AXD BATTERY COXNECTIOXS. 129 ampere-hour for each square inch of ziuc exposed to…
