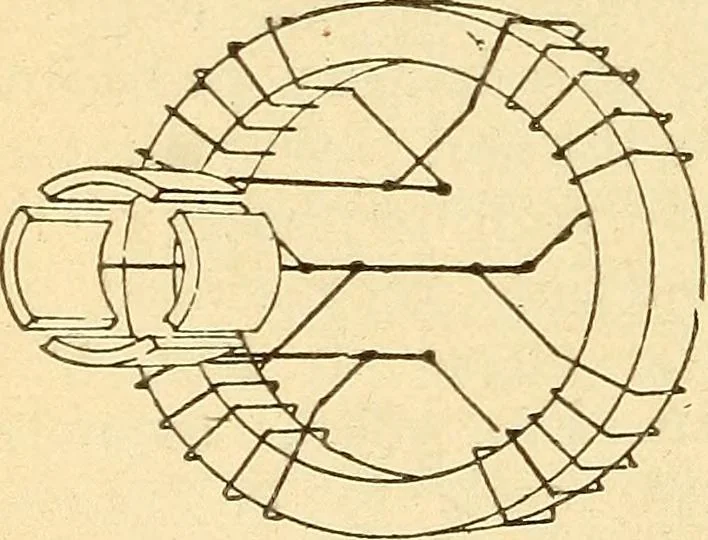

he number of coils is increased the commutatorsections are increased, as will benoted in the armatures depicted inFigs. 324, 325, and 329. An eight-coil ring armature is depicted inFig. 324, rotating against the-handsof a clock in a bipolar field. Theconnections are the same as thosegiven above.… … Fig. 323.—Four-Coil Gramme Ring Direct Current Armature. Whenflows inpositive brush, and returns from the external circuit to the DYNAMO ELEC7RIC MACHINES.
