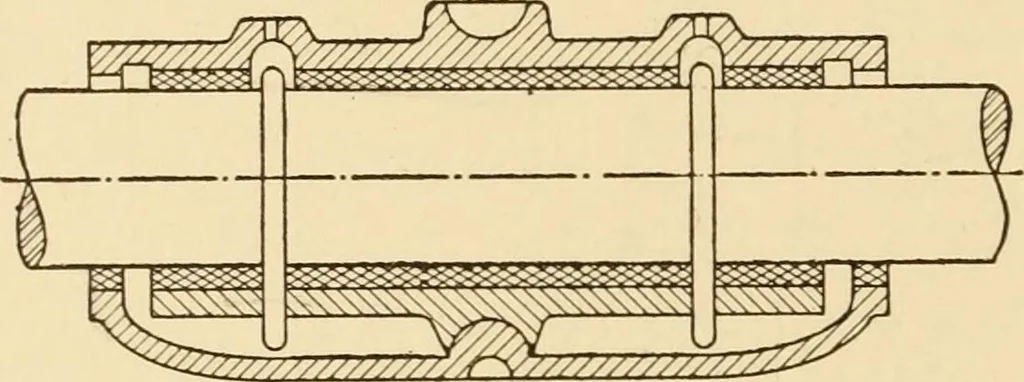

Fig. 168. Hanger Bearing. 90 MACHINE DRAWING 128. Hangers.—Bearings for line shafting are supported by someform of hanger with provision for adjusting the position of the bearing.The general appearance and some proportions are shown in Fig. 168(Table 14). A section of a ring oiled babbitted box for… … Fig. 169. Section of Box. 129. Pulleys.—The forms and proportions of pulleys are dependentupon their use. For belt drives pulleys of cast iron, wood or steel areused with flat belts made of leather, cotton, rubber and other flexiblematerials.
