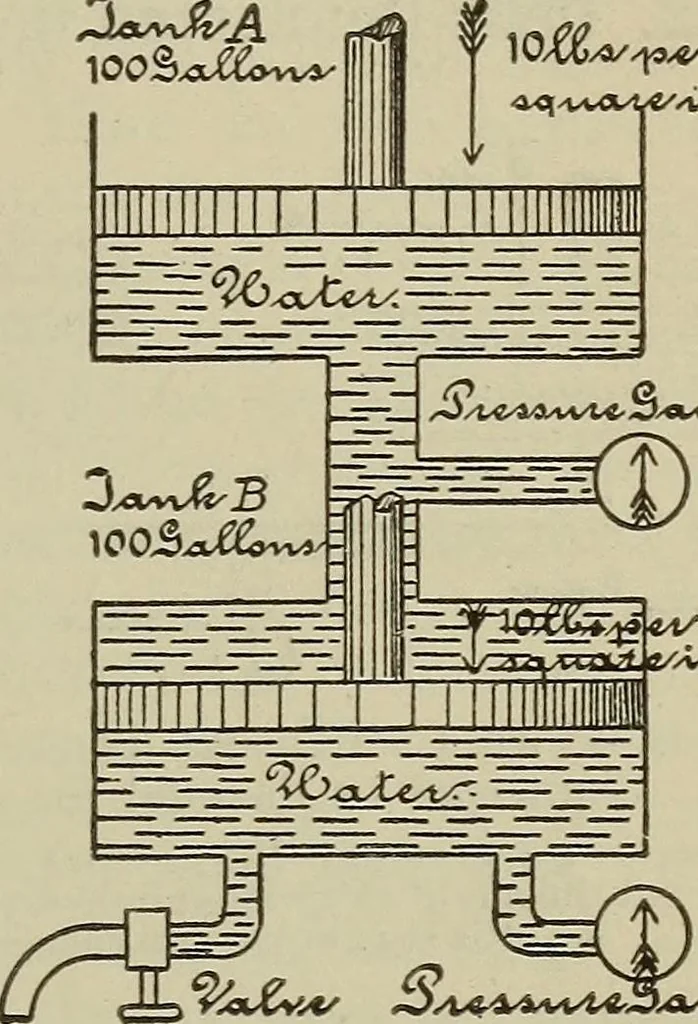

141. Cells Connected in Series to Increase the E. M.F.—Consider the hydraulic analogy in Fig. 107, where the twosimilar cylindrical tanks A and B have a capacity of 100 gal-lons each. The pressure on the water in tank A and con-necting pipe C is 10 pounds per square inch, due to theweight of the… … the piston on tank A above it, plus 10 pounds per square inch, due to the weight of its own piston, so that gauge 2 will reg-ister 20 pounds per square inch. The weight of the water is neglected. AVhen the valve in the drain pipe of tank B is opened this tank will deliver the same quantity of water…
