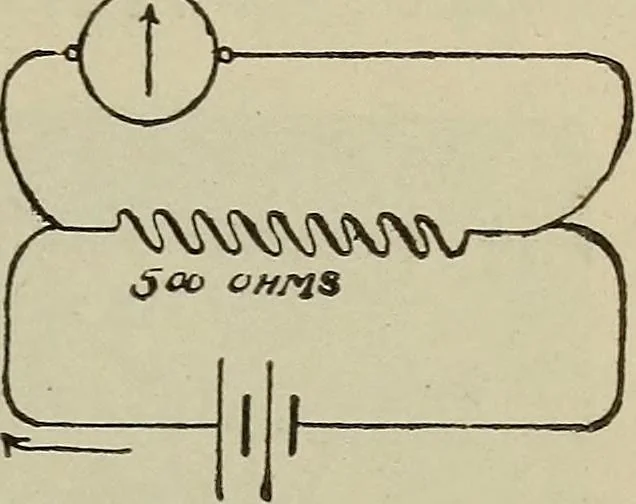

owing in the circuit, C, to that part of it, Cg, whichflows through the galvanometer. The total current, C, bearsthe same ratio to the galvanometer current, Cg, that the sumof the resistances, G H- S, bears to the shunt resistance.C G + S -A Shunted Galva-nometer. Thus or s G S =^ + 1. 1. To Find… … OmCUifS AND THEIR RESISTANCE. 147 Prob. 63: Find the number by which the readings on a AVe&?tonvoltmeter must be multiplied (or the multiplying power of theshunted galvanometer) in Fig. 122, when resistance of voltmeter (gal-vanometer) is 5000 ohms, and resistance of shunt placed across…
