Lessons in practical electricity; principles, experiments, and arithmetical problems, an elementary text-book (1902)
Swoope, Coates Walton. [from old catalog] · New York, D. Van Nostrand company · leaf 194

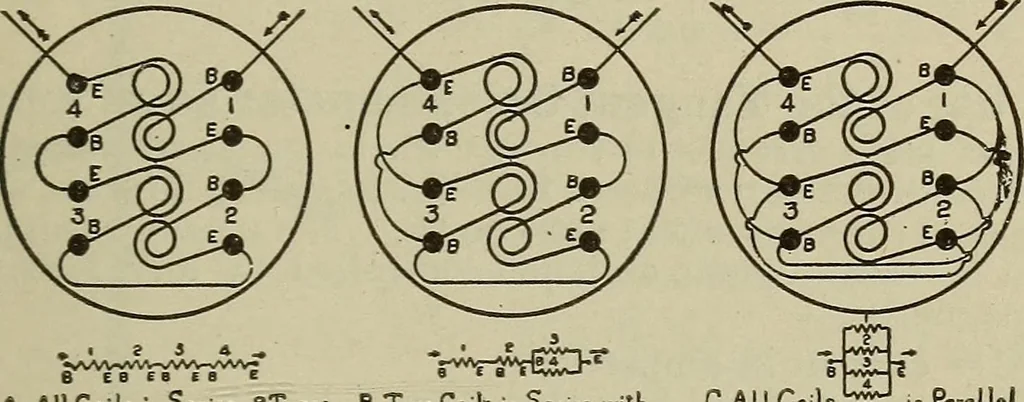

edle are also given in each case. 186. Directions for Setting up Students Combina-tion Galvanometer.— Seat the detector galvanometer on the horizontal support of thecoil frame, Fig. 158, by means of the projecting wooden pin. Turnthe frame so that it points N and S, Avith its plane in the… … A All Coil B.Two Coils in Series wltkTwo in Parallel-6 Turn. C All Coils 8Tur .nParaJUJ Fig. 160.—Connections of Coils in Students Tangent Galvanometer. vanometer on its wooden pivot so that the zero position on thescale lies directly underneath the pointer. Send a current throughthe four coils in…
