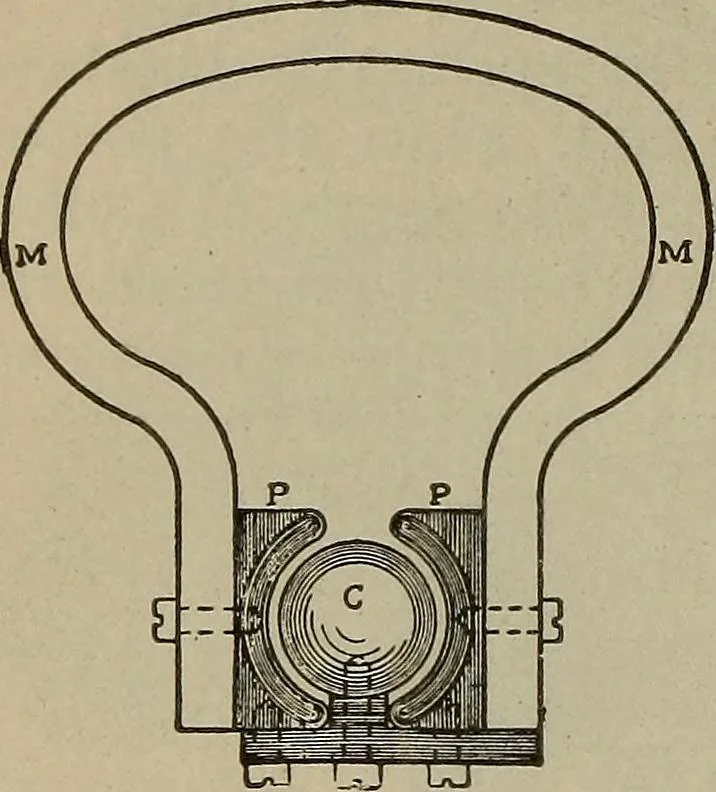

the pointer so thatit is directly over its reflection in themirror, errors in reading the scaledivisions due to parallax * are thusavoided. In Weston instruments thepost marked -\- is the one by whichthe current should enter the instru-ment so that the coil will be deflectedin the right… … Fig. 197.—The Magnetic Cir-cuit of the WestonInstruments. alloy, and contained either in the in-strument, in a separate portable case,or on an external block. Fig. 199, as inthe switchboard type of instruments.The lead wires to the shunt, the instru-ment and the shunt, are all numberedto…
