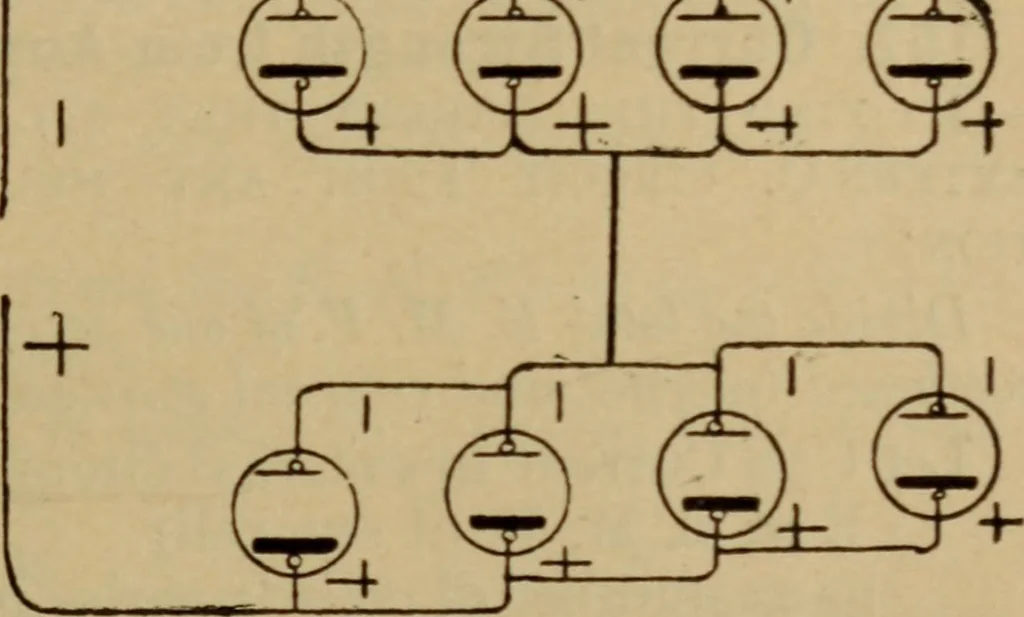

ged 4 in parallel, 2groups in series, Fig.114. Each cell has anE. M. F. of 2 volts andan internal resistance of.5 ohm. What currentwill flow through the ex-ternal circuit? E. M. F. of 1 group = 2 volts. E. M. F. of 2 groups in series — 2 X2 = 4 volts. By Formula (38) Internal resistance of 1 group… … Fig. 114.—Series-Multiple Grouping of Cells. Four cells in parallel, two groups in series, equivalent to two cells in series and four groups in parallel. nq r X C = R + r = 1.23 amperes. 3+.25 series = .25 ohm E = 4 volts, 2 R ^ 3 ohms, r of 2 groups ingroups in series. 150. Internal Resistance of…
