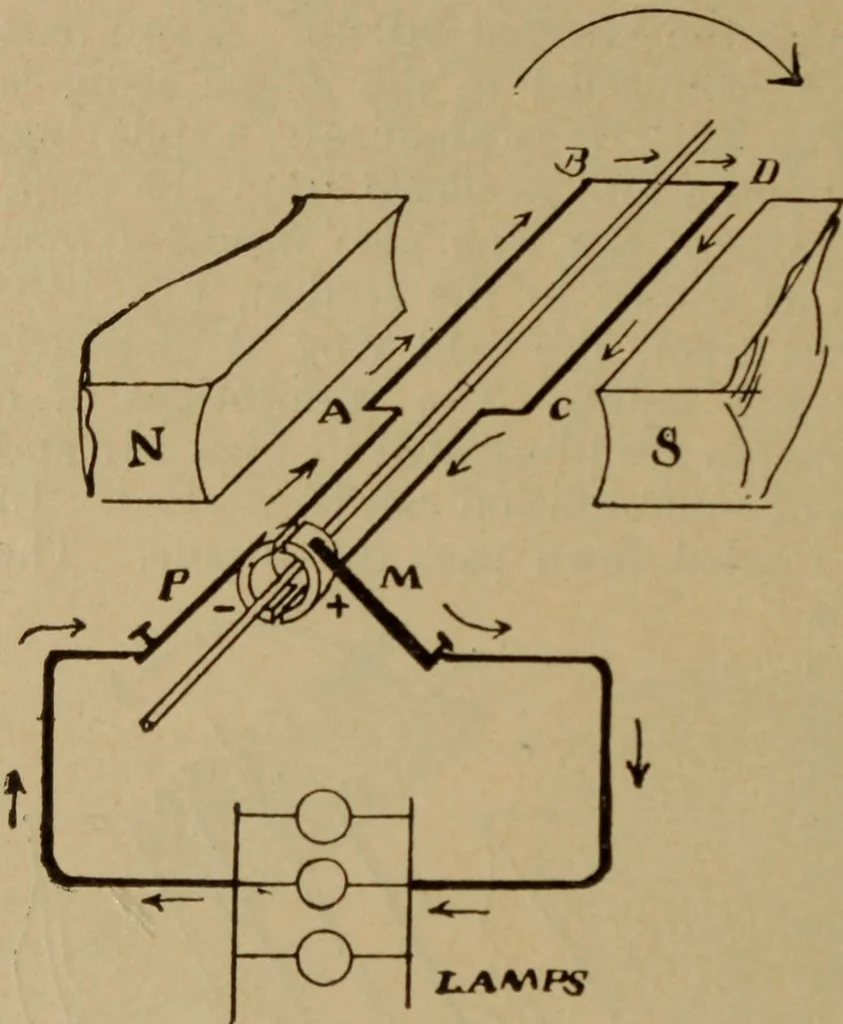

move uppast the N-pole, either terminal of the coil being connected with one brush for one-half revolution andwith the other brushfor the other half ofthe revolution. Witha two-part commuta-tor, the current in theexternal circuit is in-terrupted twice in eachrevolution. A singlecoil armature of… … Fig. 317.—Simple Direct Current Dynamo. Direction of current in the coil at one-half revolution from the position in Fig. 316. Brush M is positive as before. Exp. 92: Make thesame connections for thestudents experimental 91, page 339. Adjust the brushes so that & &* EXP* d7an)eUoCony…
