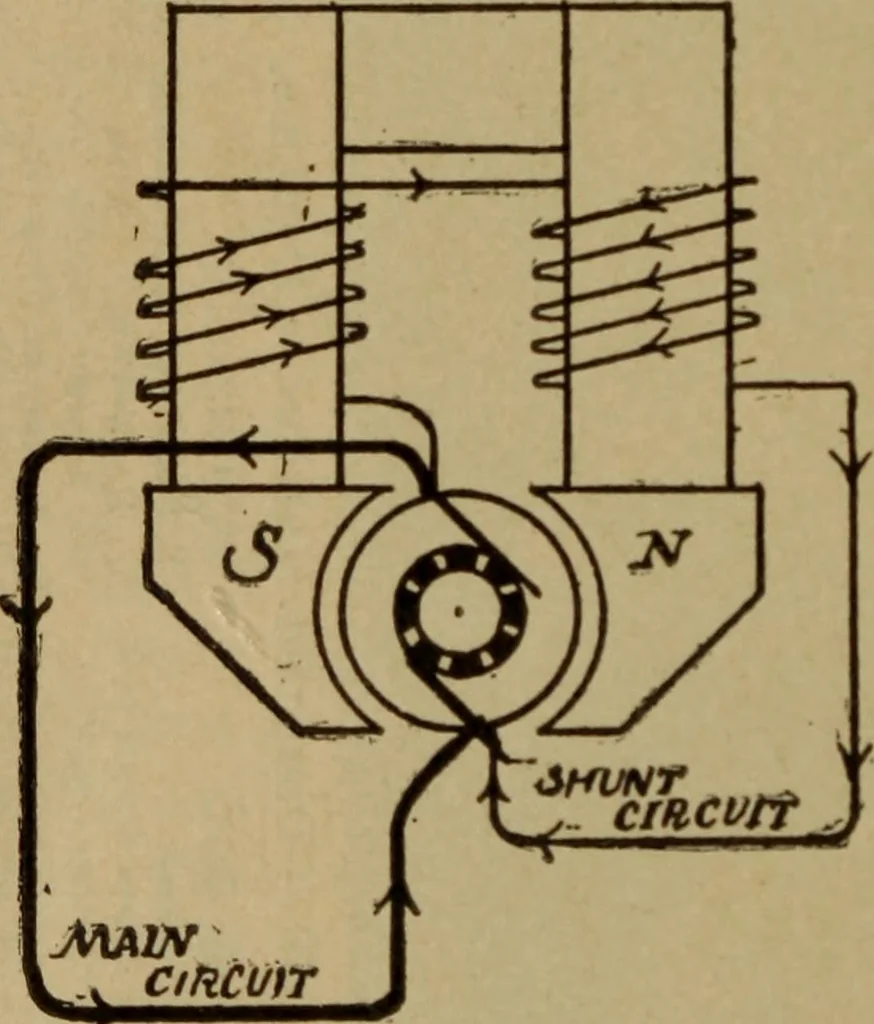

thepotential difference at the brushes, divided by the resistance of thefield plus the resistance in the field rheostat, Formula (28). The current flowing through the armature of a shunt dynamois the sum of the currents in the field circuit and in the externalcircuit. The volts drop in the armature… … Main L-. CIRCUIT Fig. 362.—Shunt Dynamo. The field magnets are connected across the brushes. B—Fig. 360. DIRECT CURRENT DYNAMOS. 381 Resistance Bo* has been carrying a load for some time, on account of theheating effect. 352. Action of the Shunt Dynamo.—In starting a shuntdynamo, after proper speed…
