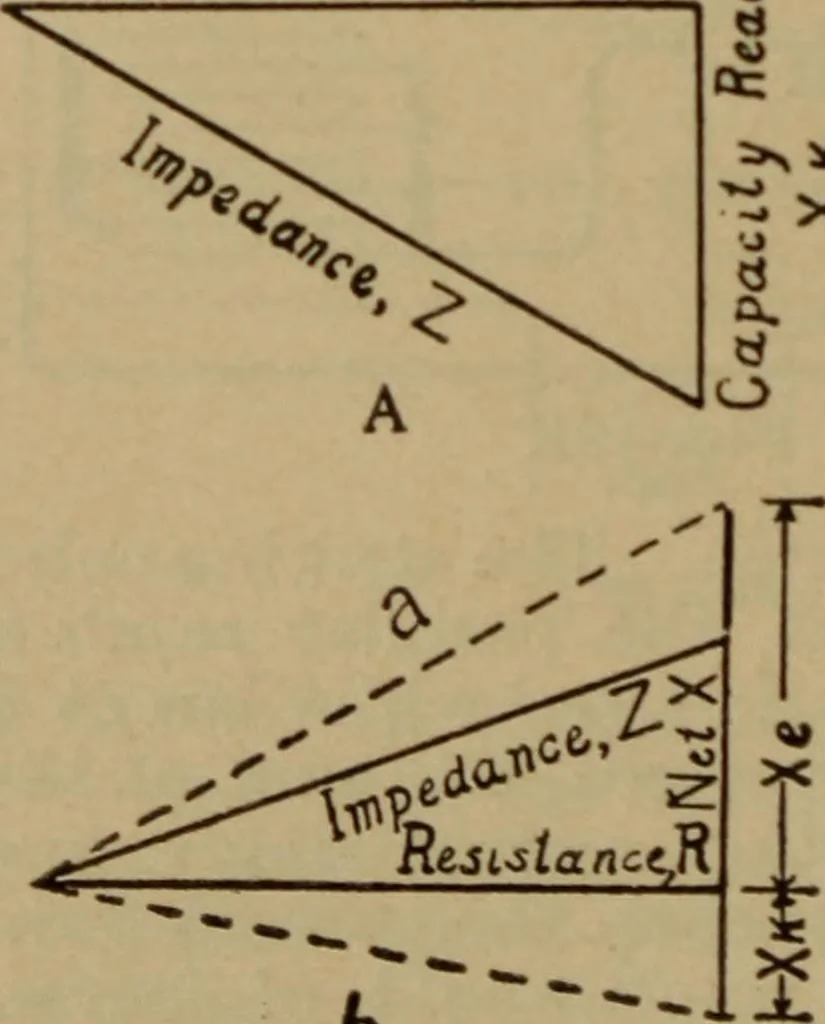

ng and falling inJ^* unison with the E. M. F. This maybe made clearer by the use of thetriangular diagram shown in Fig. 392;A, in the figure, shows the relation ofcapacity reactance, resistance and im-pedance. It will be observed that theline representing capacity reactanceprojects downward from… … b B Fig. 392. the circuit. AVhen a circuit contains both inductance andcapacity thedifferenee between the lengthsof the lines represent- A LTEHNA TING 11l rRRENTB. 449 in- inductive and capacity reactances will represent the result-ant or net reactance. X,of the circuit, as shown in B, Pig. 392. In…
