The little gold mine. Conklin's handy manual of the mechanical arts and house plans .. (1889)
Conklin, [George W.] [from old catalog] · Chicago, Laird & Lee · leaf 376

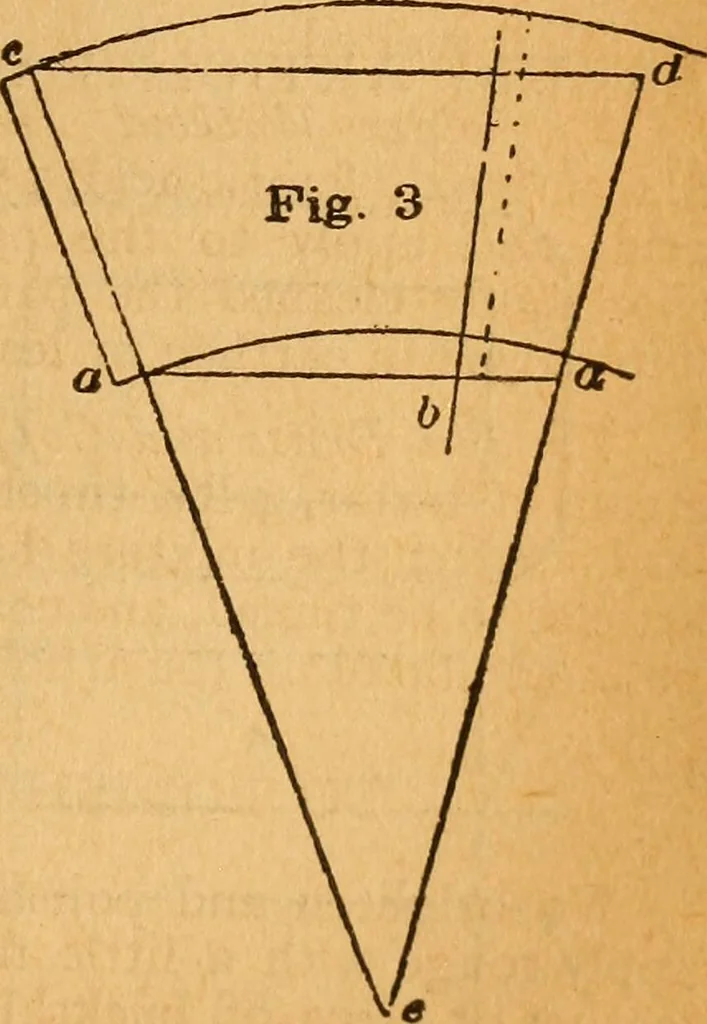

the size of large diameter. Then draw the depth of vesseland flare desired, as A B CD. Extend the lines C A and 376 D B until they cross at ^, set the compasses at ^, and describethe curved Imes C D and AB. Make the length A F equalto A A m Fig. i. Add the locks as shown in dotted lines;this will…
Industrial arts · Workshop recipes · Architectural drawing
