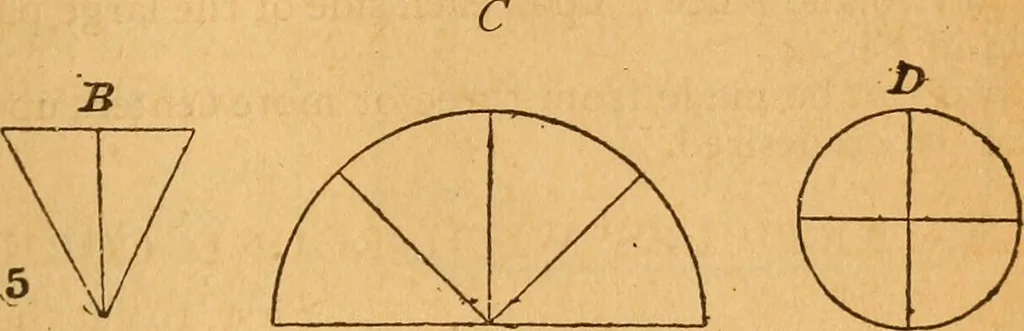

A, / 377mark off one-half of end on each side oi a b {c and d), -which Fig. 4. completes the pattern forone-half the dish. Fig. 4. For practice,we will now cut the pat-tern so the bottom, sidesand corners will be in onepiece. One end of the seamcomes on the end piece,and on the other end inthe… … divided into four parts. It will be noticed that the four cor-ners in Fig. I will make D, and that the pattern for the fourcorners {a b A, Fig. 3) are equal to C, Fig. 5. As each corner of Fig. iis one-fourth of a cone, sothe pattern of each corner,Fig. 4, is one-fourth of thepattern C, required to…
