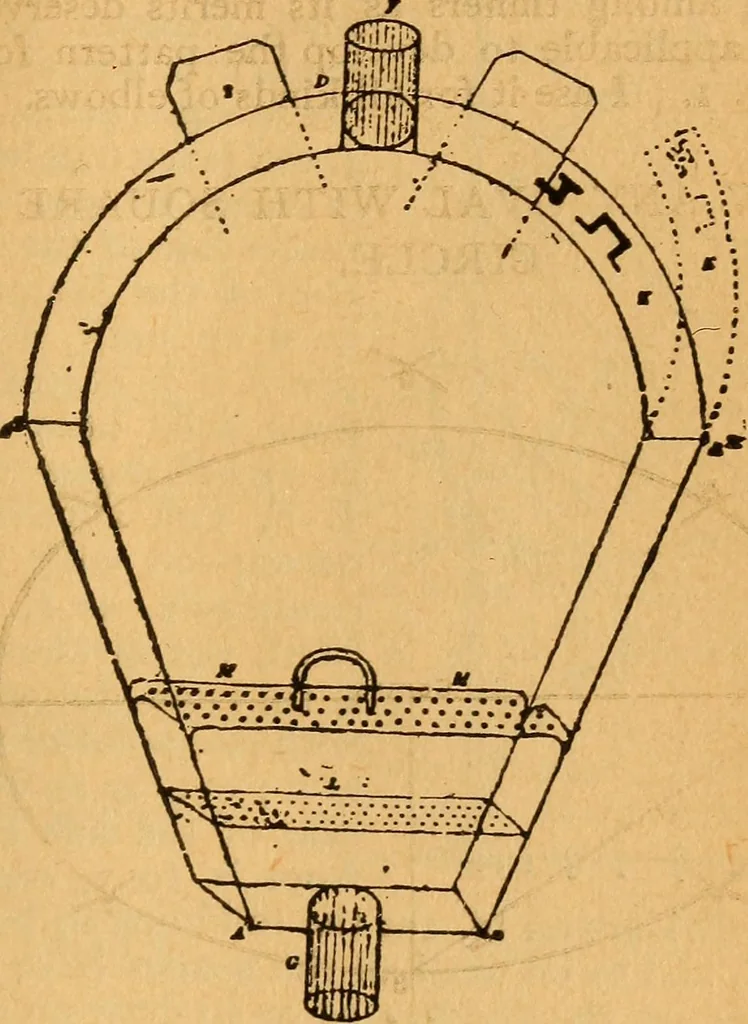

mpass from 4 to 5, and from 6 draw head lines of circles 7and 8, and dot 7 and 8 from points i and 2. Set compassfrom 7 to 7, and mark 9 from 7 7 and 8 8. Complete ovalfrom 9. 399RAIN WATER STRAINER. I hand you a sketch of a rain water strainer which I haveput up and which gives good results. It is… … strainer. K\s, a section of circular top hinged at B^ andfastened with a turn button. The dotted lines at E showthe section of circular top, K, partly open; /« is a galvanizedstrainer with three-eighth inch holes. The strainer restsupon supports at the ends, and may be removed at will. Lis a tin…
