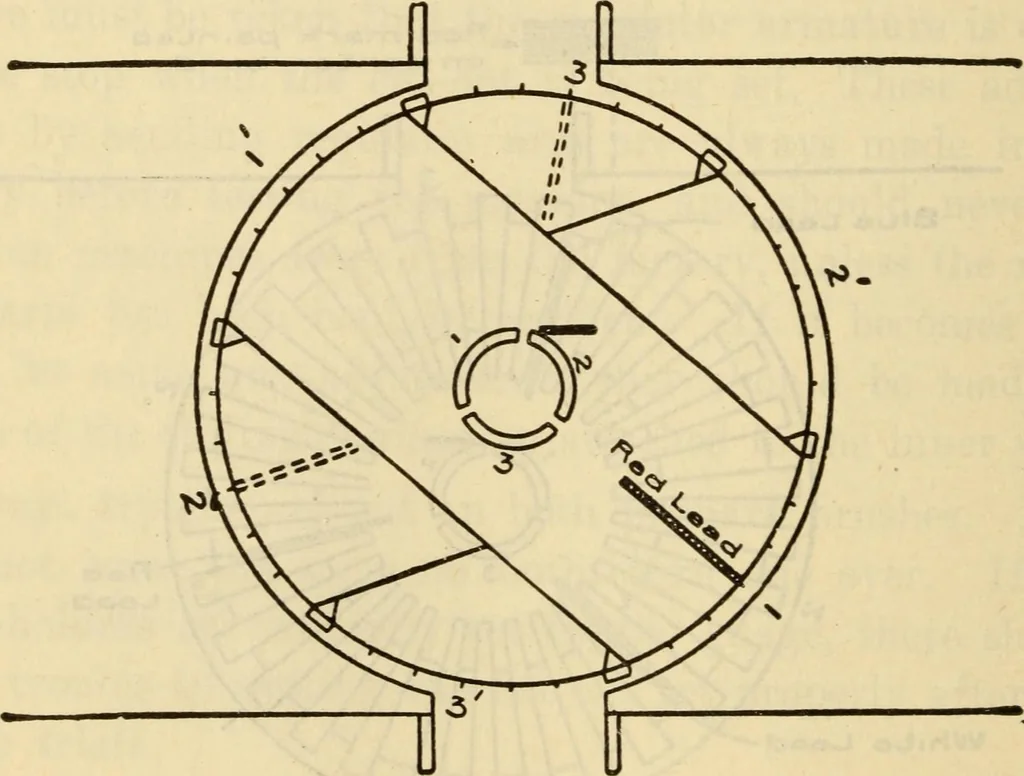

that it is more heavily insul-ated than the rest, and is found in the center of the outer 1102 Steam Engineering coil, on the commutator end. With this wire turned under-neath, rotate the armature forward, or counter-clockwise,until the pegs on the right-hand side of this coil just dis-appear under… … Fig. 479 tation), should be as shown in Figs. 480 and 481 when set-ting the commutator. When the armature of a right-handed machine is inposition, the commutator is turned on the shaft until seg-ment No. 1 is in the same relative position as the last halfof No. 1 coil; segment No. 2 should…
