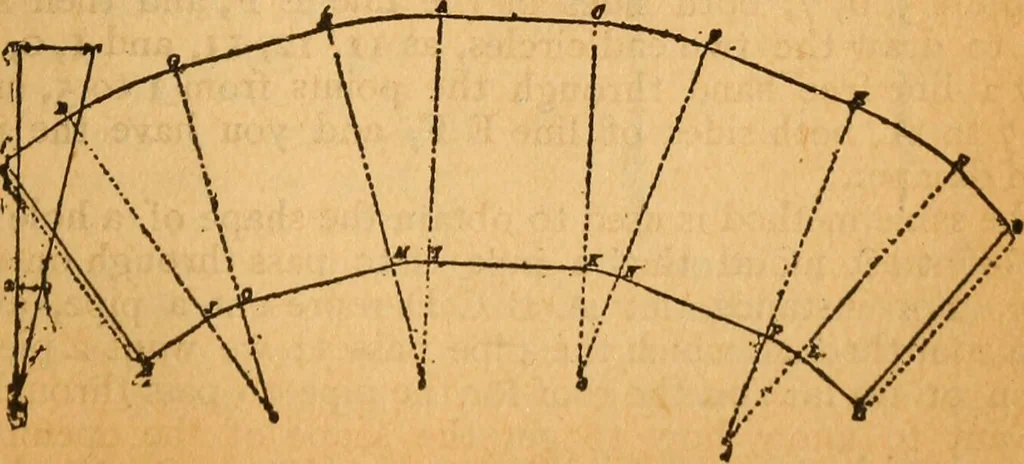

ng heightand the radius required forstriking the corners. Draw thelines I K and A C, Fig. 4, thesame length as I K, Fig. 2, andthe same distance apart as 1 to i,Fig. 3; prolong the lines A Iand C K, Fig. 4, till Ac andC d equals to i m, Fig. 3.With radius d C, Fig. 4, usingd and c as centers,… … ter-circle D H, Fig. 2, and dot off the same distance fromC to F, Fig. 4; make A E equal to C F, and draw 402 lines from E and F to the centers c and d; draw E Gand M O at right angles with E c. Take the dis-tance from A to C, and make the same distance fromE to G and M to O, Fig. 3. Draw Ge…
