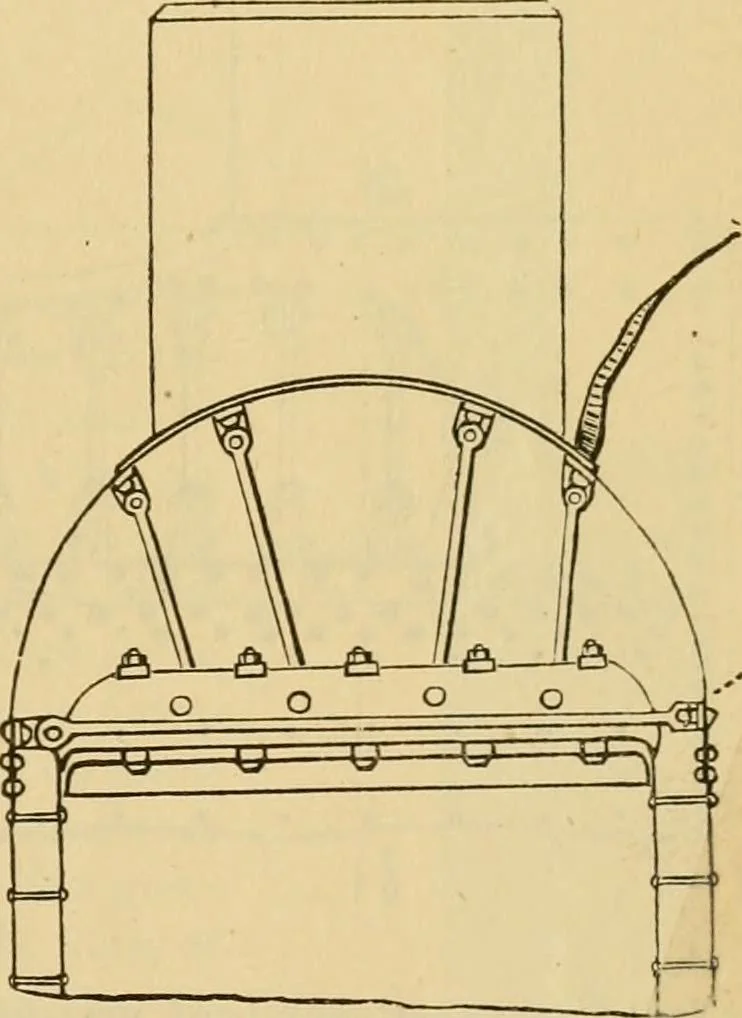

the upper side, at the forward end by the waist seam of rivets, sixof which were sheared off, and at the back end by the foot of a short head brace,shown in Fig. 2. Fig. 1 is a section back of the dome, and Fig. 2 is a side elevation ofthe wagon top and dome, all other parts omitted in drawing (not… … 78603 THE LOCOMOTIVE. [January, acter of the defects. Fig. 4 is cut from a sketch, full-size, of the edge of the plate c, d,shown in plan. The lines v, ®, indicate the worn edges of the lamina? of the platecovered with old iron oxides and clayey sediment from the interior of the boiler. Theline 2V,…
