Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 104

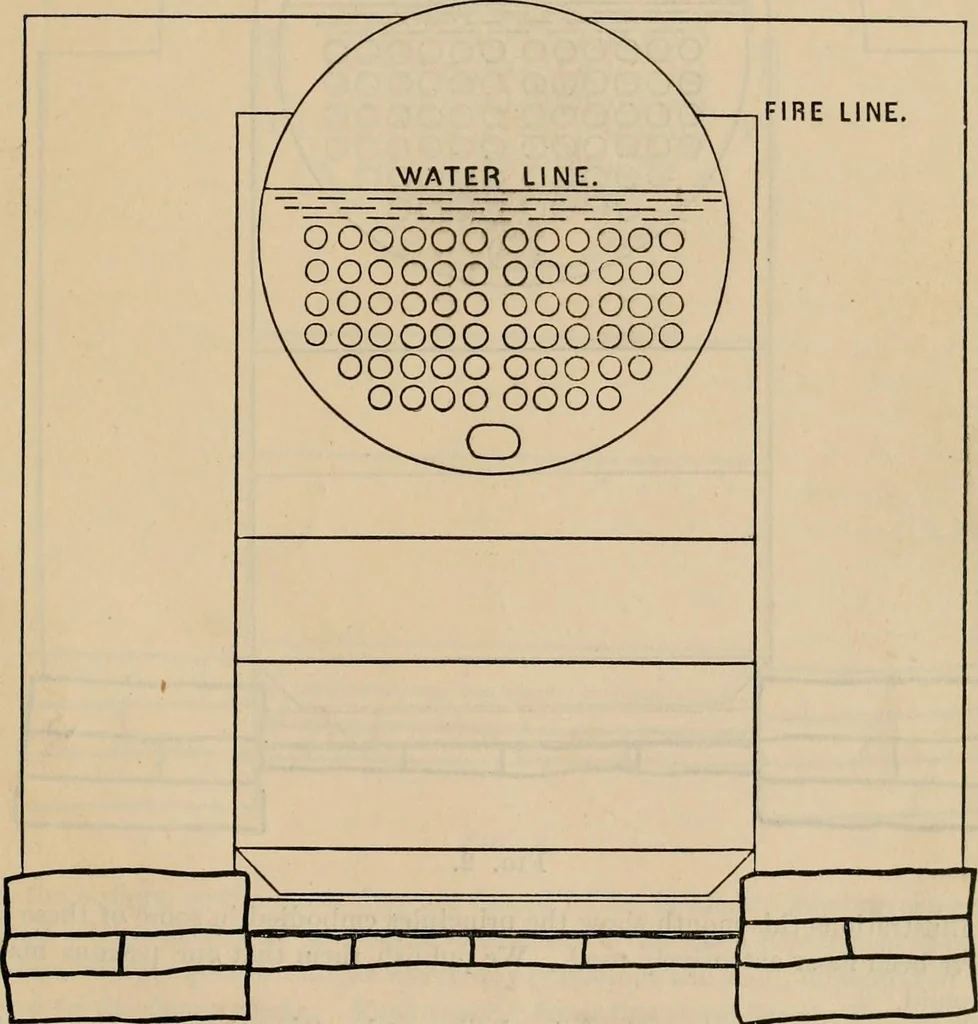

ilers. We have often pointed out the fact that if the fire-line of a boiler is above thewater line, that is, if the setting is carried above the water-line before it is closed in tothe shell, it is almost certain that the boiler will be injured, if not ruined sooner or laterby the action of the… … Fig. 1. There are several methods of setting boilers so that portions of the shell unpro-tected by the water are exposed to the direct action of the fire. Varying amounts ofthe shell may be thus exposed in the various styles put forth, according to the construc-tion. The inventors and advocates of…
Locomotives · Steam-boiler explosions
