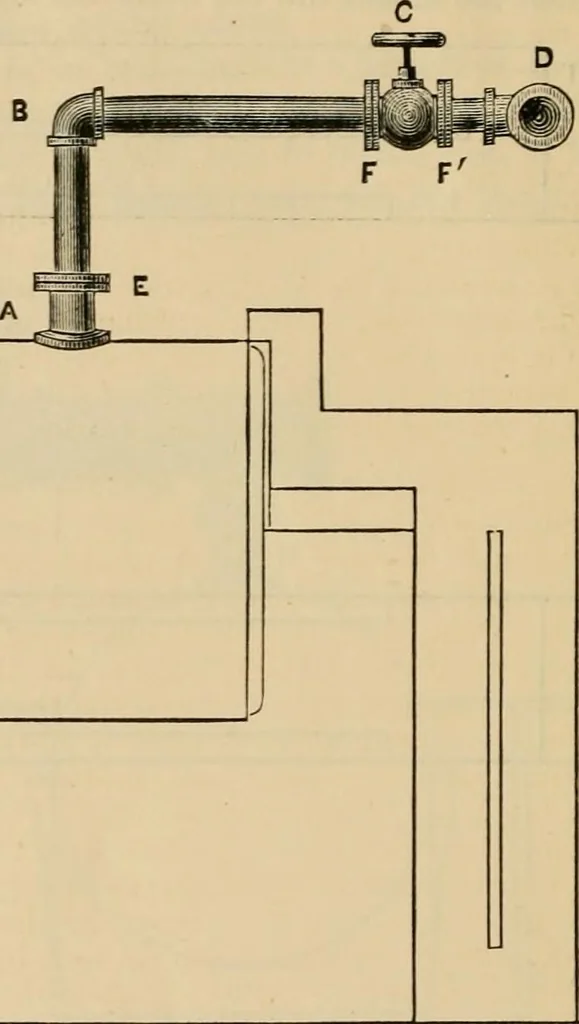

ry, without disturbing any other por- 110 THE LOCOMOTIVE. [July, tion of the piping. The main steam-pipe may be supported by means of long hangersfrom the roof of the boiler-house, when practicable, or if this cannot be done, it may beheld up by posts which rest on the back-wall of the… … „.M Fig. 3. occur. The height of the risers should never be less than three feet, and when there areeigl:t or ten boilers in one battery, they should be, if room permits, six to eight feet high,and the horizoulul pipes leading to main steam-pipe should be ten to twelve feet ormore. Photogcraphy in…
