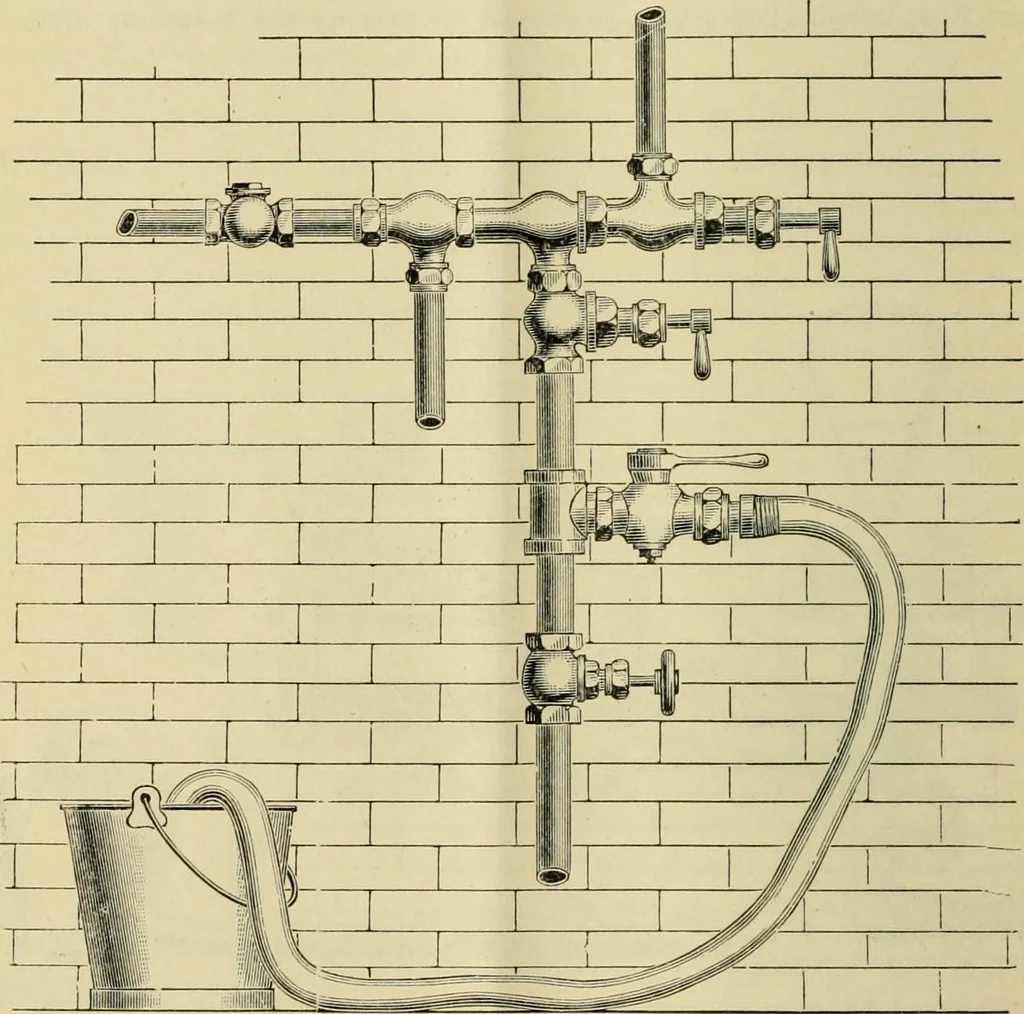

g to the illustration, A is a section of big pipe — say 6 inchesin diameter and 30 inches long — which is to serve as a reservoir. Thisconnects with the feed pipe running from the pump to the boiler, by meansof the pipes B, C, and F, which are so arranged that they connect with thefeed pipe on… … Fig 6.—Arrangement for Introducing Solvents with an Injector. and bottom, so that it may be readily filled and emptied. A union is providedat C, to facilitate the assembling of the piping. (A right-and-left elbow, ofcourse, may be used instead, if it is preferred.) The device is used as follows:…
