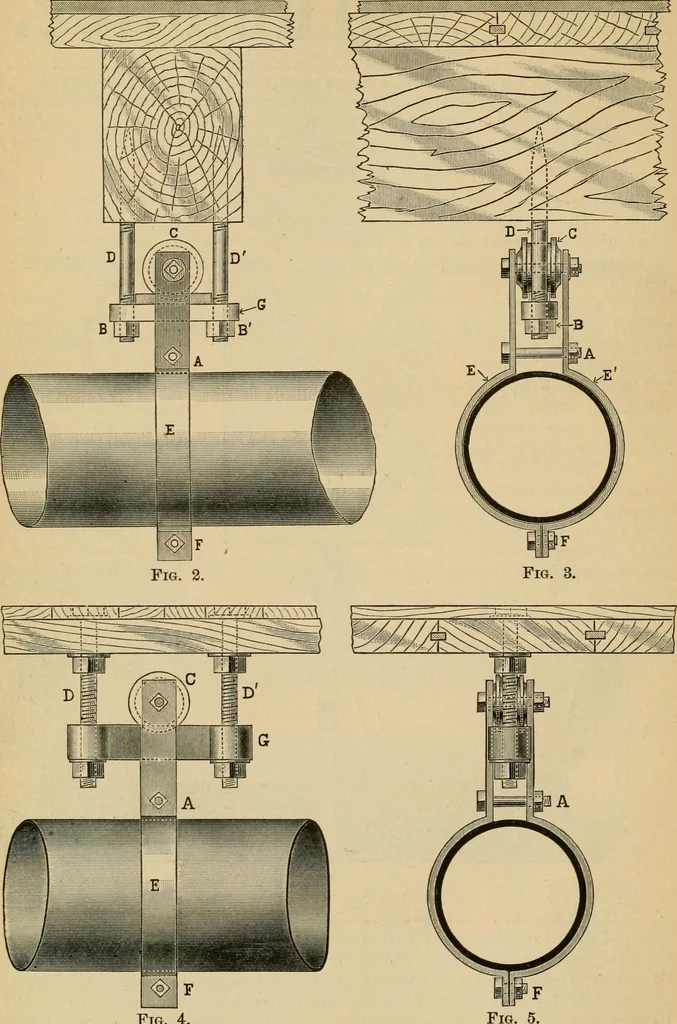

he line supported the entire weight ofthe pipe. In many cases the ring will be found lifted clear out of its supporting hook..Of course it is evident that when this is the case those hangers which do remain in place ■have to carry a greatly increased load, so that unless they are of excessive… … Fig. 4 Pipe of any size should always be supported by some sort of hanger that will admit•of a parallel motion when the pipe expands. We illustrate in this issue various forms 1887.] THE LOCOMOTIVE. 163 of hanger which we have found to answer admirably for supporting long lines of heavysteam pipe.
