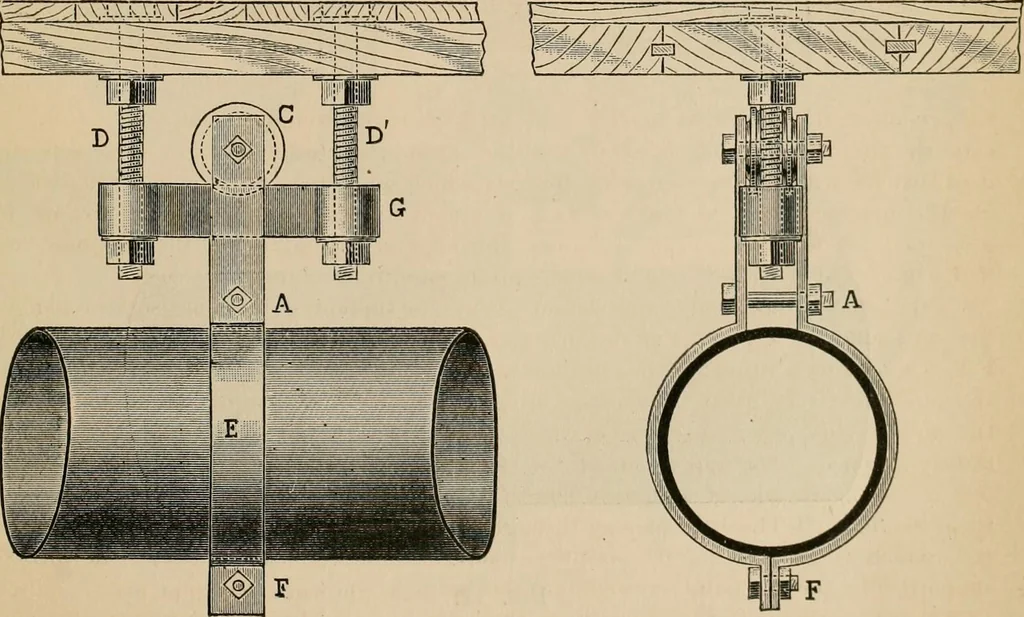

Figs. 5 and 6. Figs. 7 and 8 show a hanger exactly similar in principle to the one just described,but available in a case where it would be necessary to carry a pipe as close as possible to … Figs. 7 and 8. 118 THE LOCOMOTIVE, [August, the timbers. In this case the weight of pipe would be carried by the floor planksinstead of tlie beams. With mill floors as constructed at the present time, this wouldform a good support, especially if it were placed close beside a beam. Two bolts are
