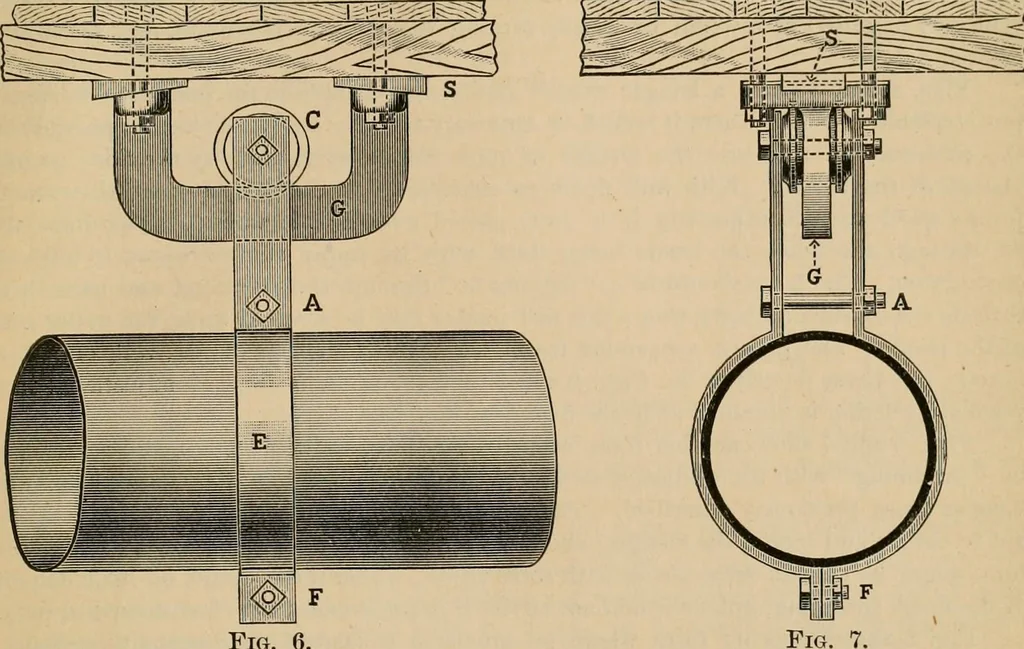

Fig. 4 Pipe of any size should always be supported by some sort of hanger that will admit•of a parallel motion when the pipe expands. We illustrate in this issue various forms 1887.] THE LOCOMOTIVE. 163 of hanger which we have found to answer admirably for supporting long lines of heavysteam pipe. … Fig. 6. Fig. 2 is a side view and Fig. 3 an end view of one of the cheapest and best formsof hanger where the motion of the pijje is not very great. Two clips are made of 3 X i
