Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 126

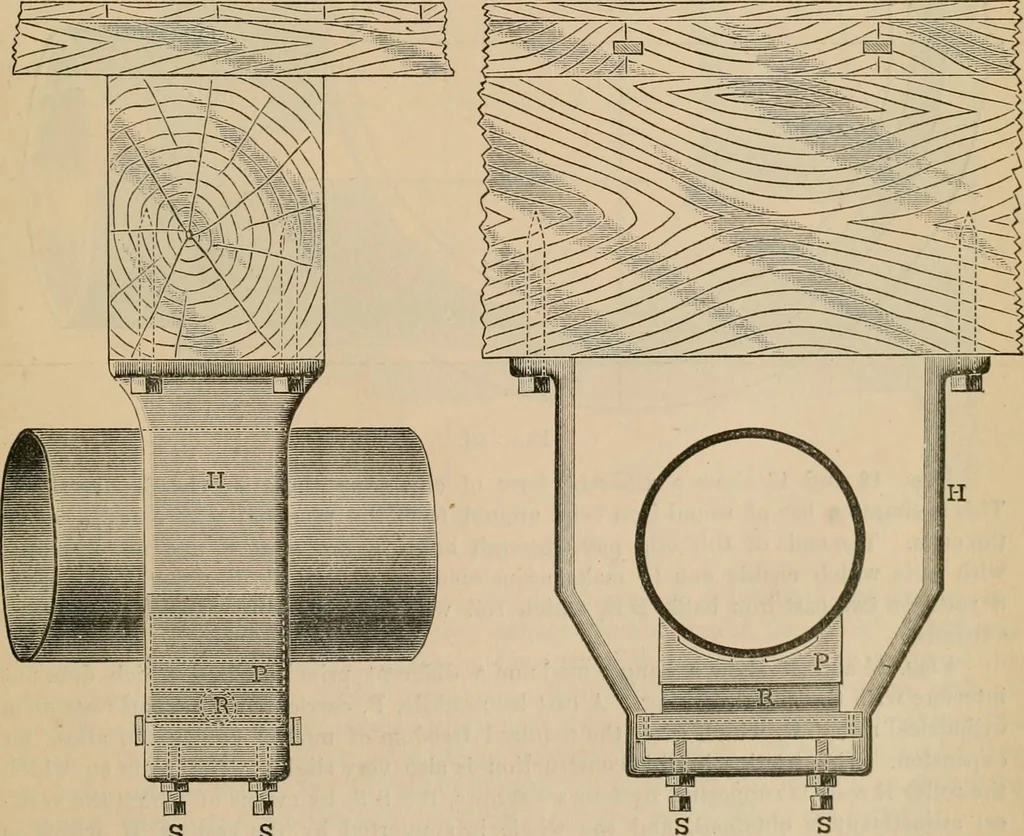

Figs. 13 and 13. … S S Figs. 14 and 15. 120 THE LOCOMOTIVE, [August, of the plank. The pipe is suspended from tliese bolts by means of bar, roll, and clipsexactly as in Figs. 5 and 6, and the same facility of adjustment in a vertical directionis obtained as in that design. Figs. 9 and 10 show another form of hanger,…
Locomotives · Steam-boiler explosions
