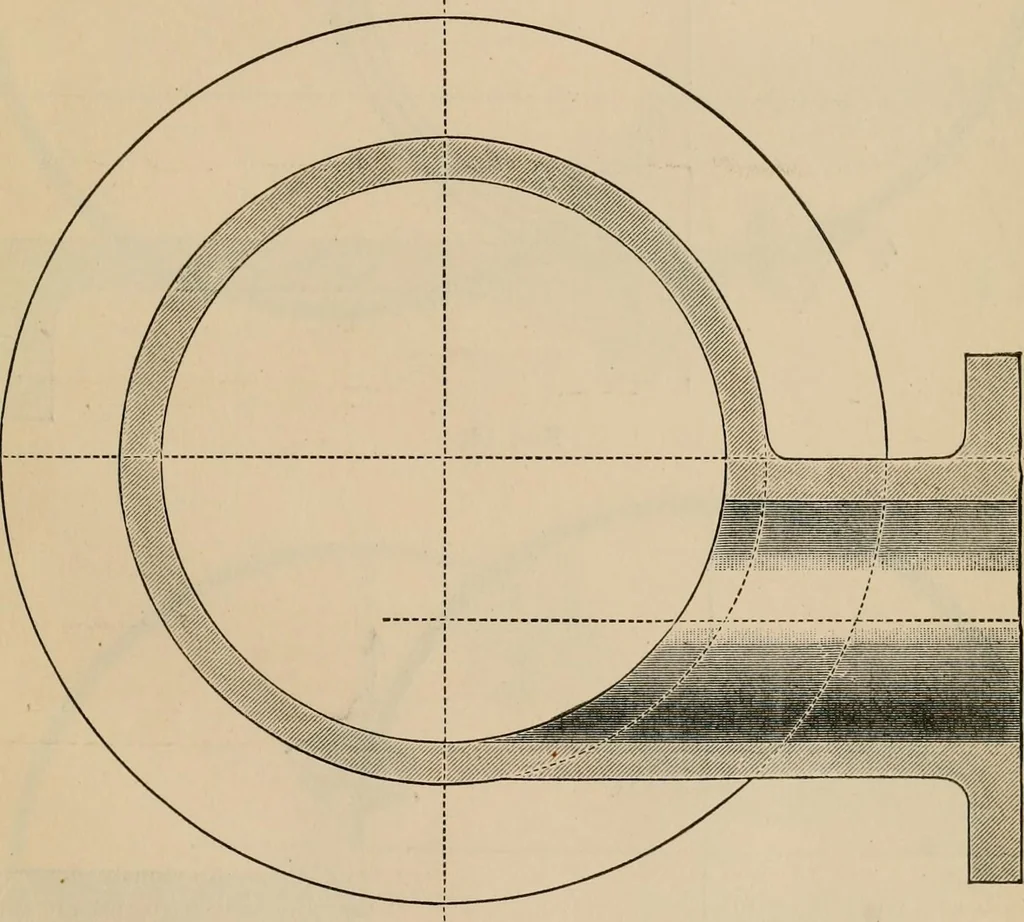

uch work, but it is nevertheless true. For drums up to ten inches in diameter, made usually of ordinary steam pipe, theconnections from the boilers are generally by means of the ordinary screwed tee. Wewill suppose, for instance, that four sixty inch boilers are set in a battery. Then thedrum would… … Fig. 17. So far this is all right. But the pipes leading from the dnim to the engine andother parts of the establishment are not usually the full size of the drum. They willoftener be found not over six inches in diameter, and are taken out by means of theusual forms of fittings. These pipes being…
