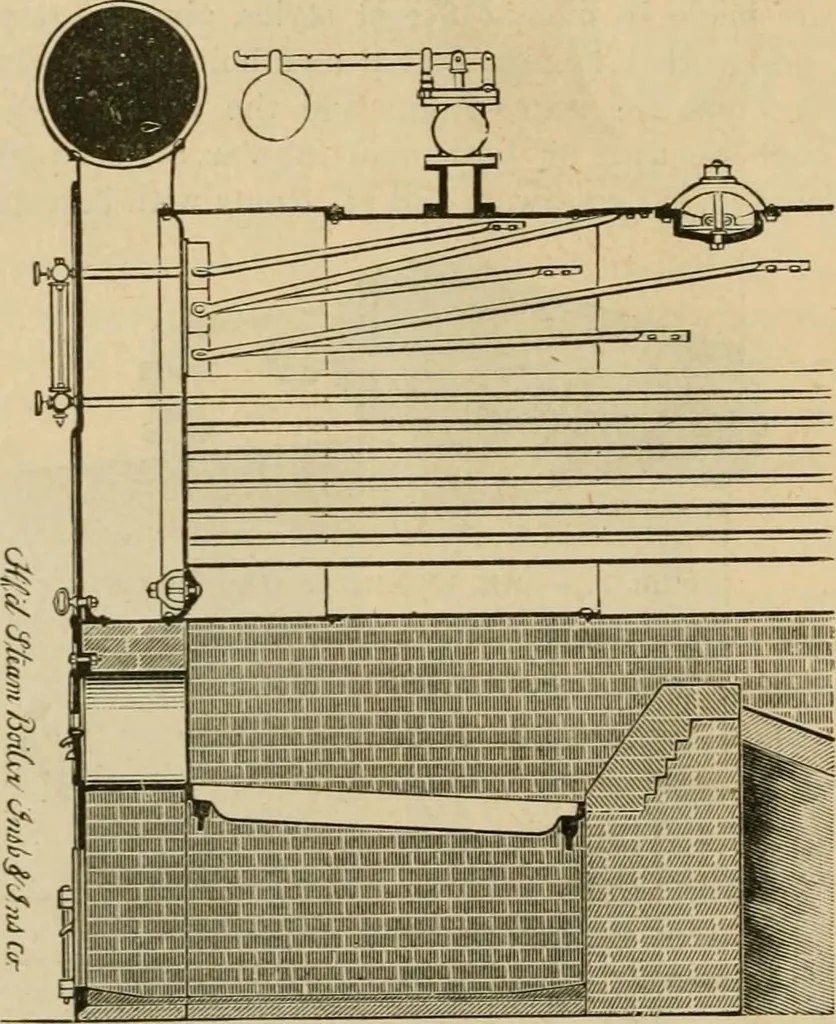

in Fig. 3 and in section in Fig. 4,this tendencj^ is entirely prevented by setting the boiler in such a manner that the drvsheet projects out into the boiler room. If the bi-ickwork over the fire door falls awaywhen a boiler is set in this manner, the only effect is to slightly increase the… … Fig. 2. — SECxioNAii View of Flush Front. way of the fireman. To meet this point and yet preserve all the advantages of thiskind of front, the cut-away style has come into use. It is shown in perspective and insection in Figs. 5 and 6, respectively. In this form the lower portion of the front…
