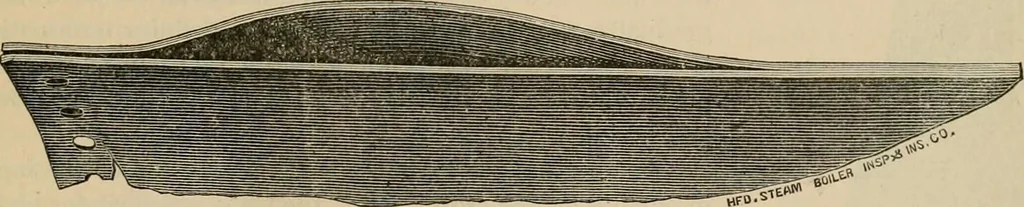

loped on the lower side of the second fire sheet. It was raisedabout three inches at the highest point, and as nearly as could be judged by the eye itcovered an area about twenty inches square. Ou cutting it out, however, it was foundthat the lamination extended in a thin line so as to separate the… … Fig. 1.—Laminated Plate cut from a Steel Boiler. the cut. The outer layer, being exposed to the fire, had bulged over part of its extent,while the inner half showed no change in form and was free from any scale or deposit.The workmanship on the boiler is first-class in every respect, and the…
