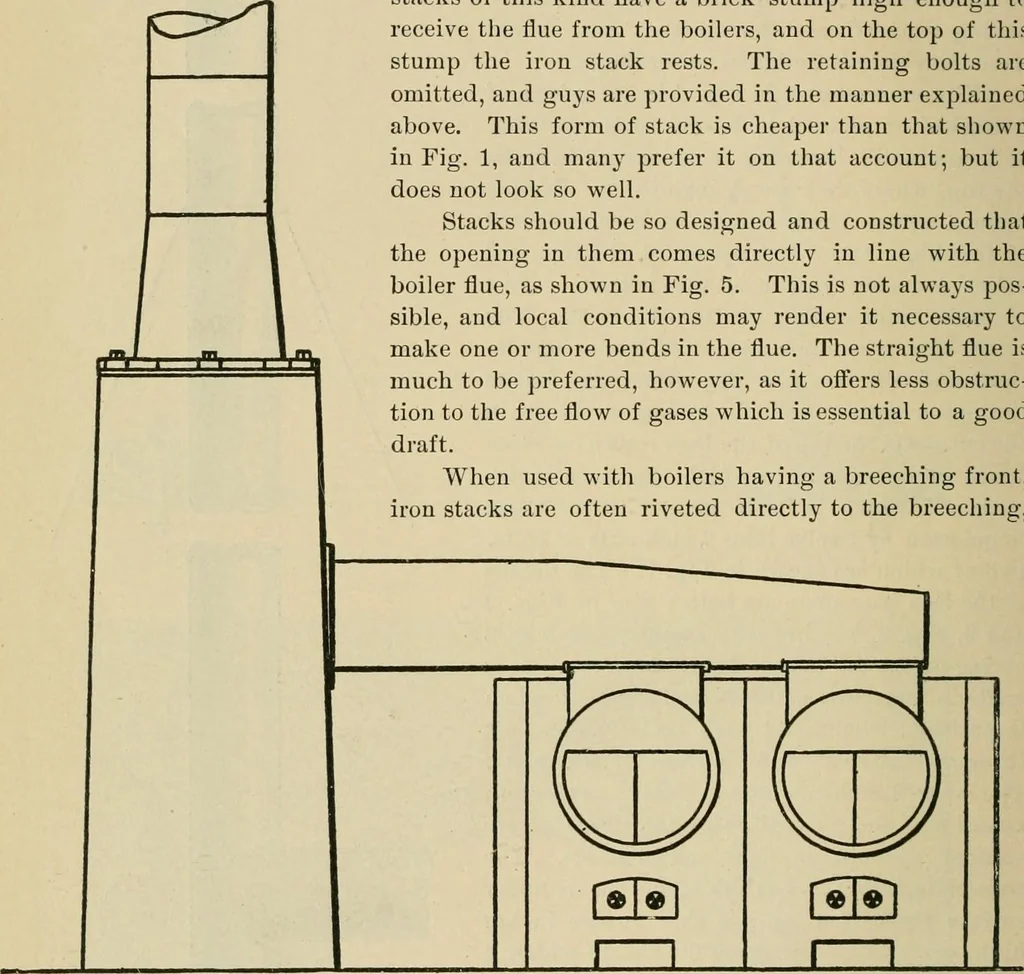

well. Stacks should be so designed and constructed thatthe opening in them comes directly in line with theboiler flue, as shown in Fig. 5. This is not always pos-sible, and local conditions may render it necessary tomake one or more bends in the flue. The straight flue ismuch to be ])referred,… … Fig. 5. —Illustrating the Relation of the Flue to the Stack. as shown in Fig. 6. When this is done the gases have a freer exit, even, that when thestack is arranged as in Fig. 5; but care should be taken to have the bolts and otherparts of the breeching and boiler front strong enough to sustain the…
