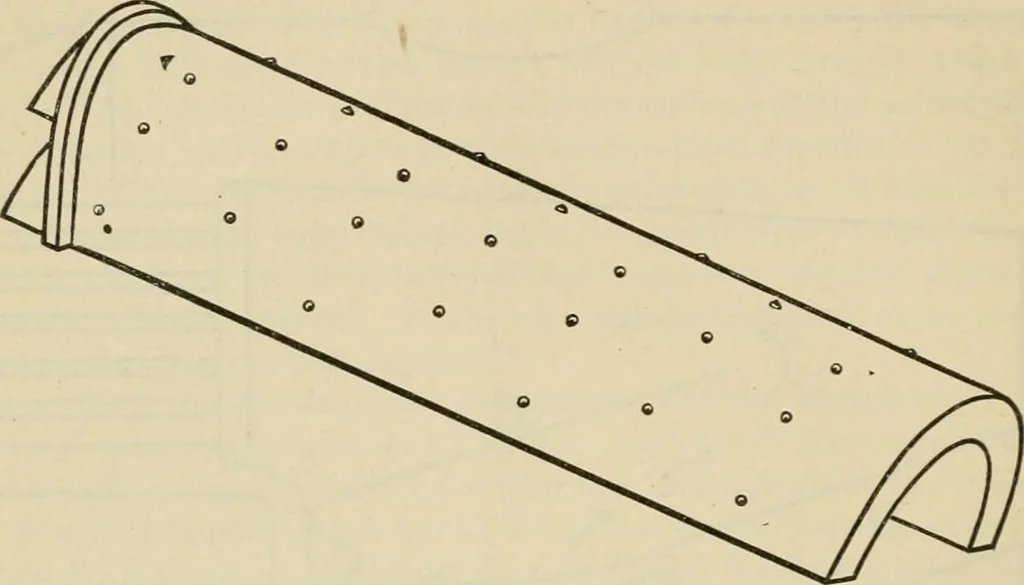

inch pipes, PP, are ledoff, and these are bent so to re-enter the front water-leer, as shown in both Fig. 1 andFig. 4. When the device is in operation, a continual circulation of water iskejit up through- 62 THE LOCOMOTIVE. [Aprfl, these pipes and the metal deliecting-plate, and a current of air is… … FiG. 8.—The Cylindrical Deflecting Plate.
