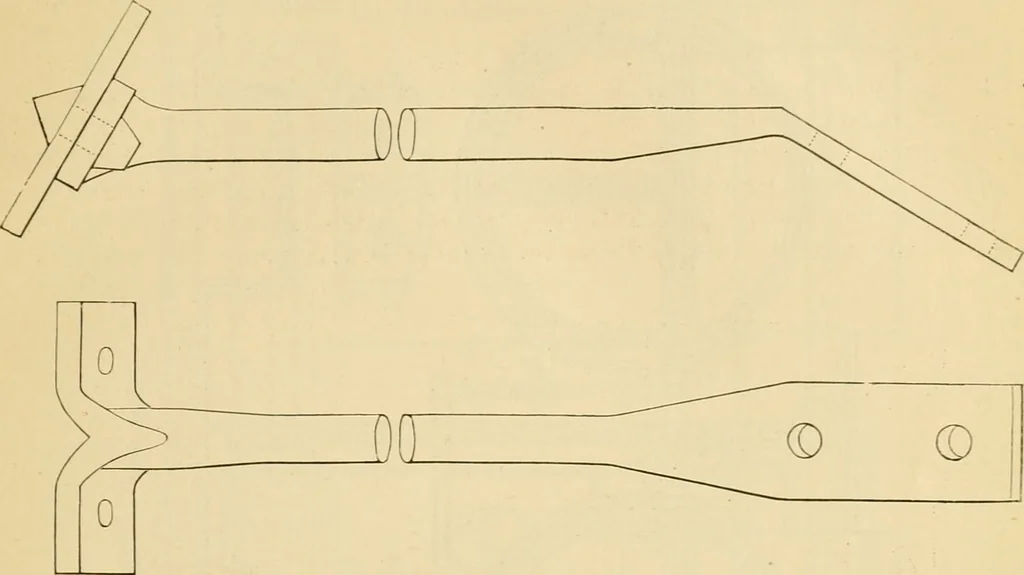

ut, inasmuch as many rivet holes have beencut out, its strength has been reduced to 70 per cent, of the solid plate. Returning, then, toour problem, the bursting and safe-working pressure of a boiler 60 inches in diame-ter: we have 60,000 X f inches (thickness of plate) X 70 per cent. (strength of… … FiG. 5.—Cro-w-fgot Braces working pressure of the above boiler. This is only an illustration of the method ofcalculating the safe-working pressure of boilers, of diameters from 48 inches to 72inches, and of different thicknesses of plates, and for pressures from 100 to 160pounds. Xow, we will…
