Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1907)
Chicago : American school of correspondence · leaf 156

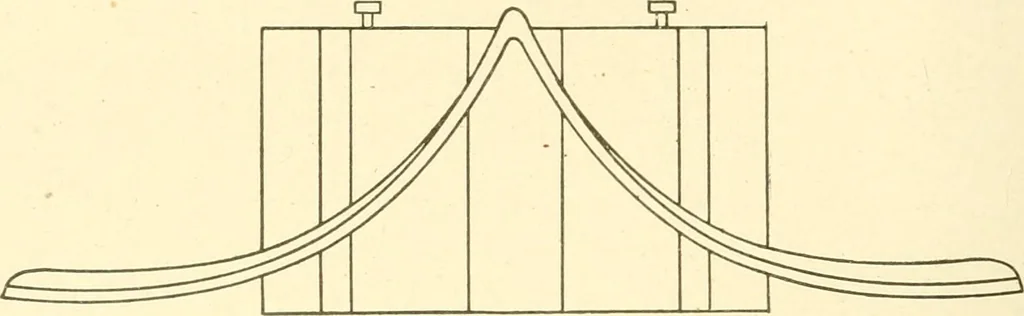

Reduced End Viewof Shoe. 135 122 WEAVING. times causes the stud of picking arm to break, and frequently theshort sharp pick causes both the picking arm and the picking stickto break. There is nothing better than the shoe that enables theshaft to be set perfectly level, for the benefit from the full… … Fig. 83. Old Style Shoe. The best setting for the shoe shown at A in Fig. 85 is heregiven. Examine the shoes and see there are no burrs on the inside;that is, on the part that fits on the shaft; it is also well to examinethat portion of the picking arm, for the shoe and arm should fitsquarely on…
